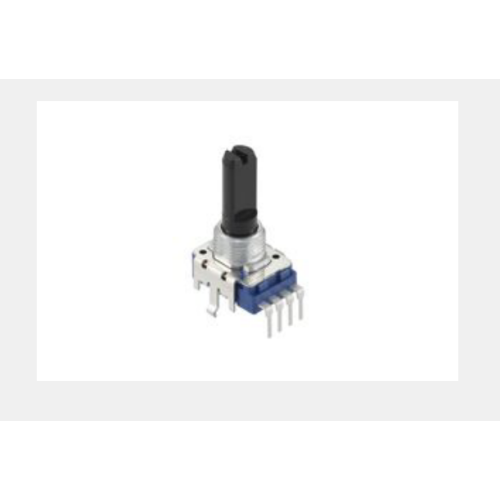

Rk11k series Rotary potentiometer

Product number:RK11K1140A3L

For mixer Market
Number of resistors Single connection (20V DC)
Direction of operation section Vertical
axle sleeve yes
Shape of operation part Horizontal axis
Length of operation part LM1 27.5mm
Central positioning nothing
Total resistance 10kΩ
Resistance law 1B
Operating temperature range - 10℃ to +70℃
Electrical properties Allowable difference of total resistance ±20%
Rated power 0.05W
Maximum service voltage 50V AC, 20V DC
insulation resistance 100MΩ min. 500V DC
Withstand voltage 500V AC for 1 minute
Mechanical properties Full rotation angle 300°±5°
Rotating torque 3 to 20mN·m
Terminal stop strength 0.6N·m
Shaft push-pull strength 80N max.
Vibration resistance 10 to 55 to 10Hz / min, full amplitude 1.5mm, 2 hours in x.y.z direction
Durability Operating life 15,000 cycles
Minimum order unit (PCs.) Japan eight hundred
Export 1,600
Welding conditions
Reference examples of manual welding methods
Soldering iron head temperature 350℃ max.
Welding time 3s max.
Welding times 1 time
