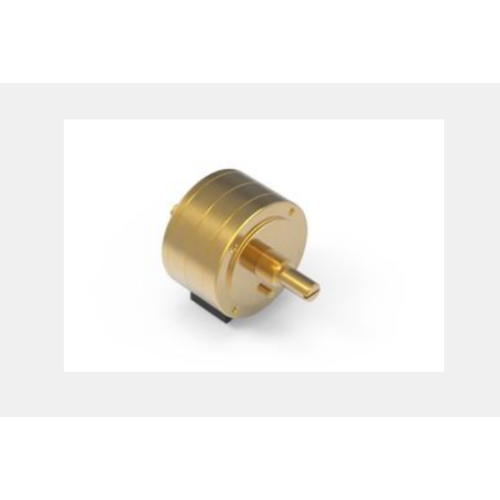

RK501 Series Rotating potentiometer

Product Number：RK50112A0004

Number of Resistors 2 pairs
Operating Department Direction Horizontal
Axis Fixed Method Screw Fixing
Operating Department Shape Slot shaft
Operational length 25mm
Central Positioning nothing
nominal resistance 100K
Resistance law 15A
Use temperature range -10 C to +70 C
Electrical performance Total resistance allowable difference +20%
Rated power 0.1W
Maximum Usage Voltage 150V AC
Maximum attenuation 120dB min.
Mutual deviation -100dB to 0dB 3dB max.
insulation resistance 100Mmin. 500V DC
Voltage withstanding 500V AC for 1 minute
Mechanical properties Full rotation angle 300 + + 3.
Rotation Torque 28 +15 mN_m
Terminal Stop Strength 1.5N.m
Push-pull strength of shaft 150N max.
Vibration resistance 10 to 55 to 10Hz/min, full amplitude 1.5mm, 2 hours in X.Y.Z 3 direction
Durability Operating life 15,000 cycles
Minimum Order Unit (pcs.) Japan 1
Exit 1
Welding Conditions
Reference examples of dipping methods
Preheat Surface temperature of welded surface Max at 120 +10 C.
heating time 2 min. max.
Dipping welding temperature 260 (+) 5 (+) max.
Welding time 5 +1s
Number of Welds 2 time
Reference examples of manual welding methods
Soldering head temperature 350 +10 C
Welding time 5(+1, 0) s
Number of Welds 1 time
