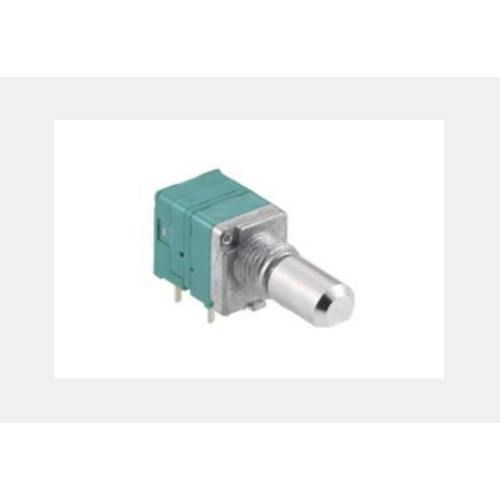

RK097 Series Rotating potentiometer

Product Number:RK0971114Z1N

1-Axis Strip On/Off (0.5mm trip) Switch
Number of Resistors Single Connection
Operating Department Direction Horizontal
Axis Fixed Method Screw Fixing
Operating Department Shape Flat Axis
Operational length 15mm
Central Positioning Yes
nominal resistance 10K
Resistance law 1B
Use temperature range -20 C to +70 C
Electrical performance Total resistance allowable difference +20%
Rated power 0.05W
Maximum Usage Voltage 50V AC, 10V DC
Residual Resistance 20max.
insulation resistance 100Mmin. 250V DC
Voltage withstanding 300V AC for 1 minute
Mechanical properties Full rotation angle 300 (+10, -5)degree
Rotation Torque 2 to 25mN.m
Terminal Stop Strength 0.5N.m
Push-pull strength of shaft 100N max.
Vibration resistance 10 to 55 to 10Hz/min, full amplitude 1.5mm, 2 hours in X.Y.Z 3 direction
Durability Operating life 15,000 cycles
Press on/off switch specification Circuit/Connection Points Unipolar Unicast
Trip 0.5 (+0.7, -0.3) mm
Switch Action Force 4 (+4, -2)N
Load life characteristics 10,000 cycles
rated 0.5A 12V DC
(10mA 12V DC min. rating)
contact resistance Initial 100 mmax. After life 200 mmax.
insulation resistance 100Mmin. 250V DC
Voltage withstanding 300V AC for 1 minute
Minimum Order Unit (pcs.) Japan 700
Exit 1,400
Welding Conditions
Reference examples of dipping methods
Preheat Surface temperature of welded surface Max at 100 C.
heating time 2 min. max.
Dipping welding temperature 260 +5 C max.
Welding time 5 +1s
Number of Welds 2 time max.
Reference examples of manual welding methods
Soldering head temperature 350 C max.
Welding time 3S max.
Number of Welds 1 time
