Alps Potentiometer Multifunction Device

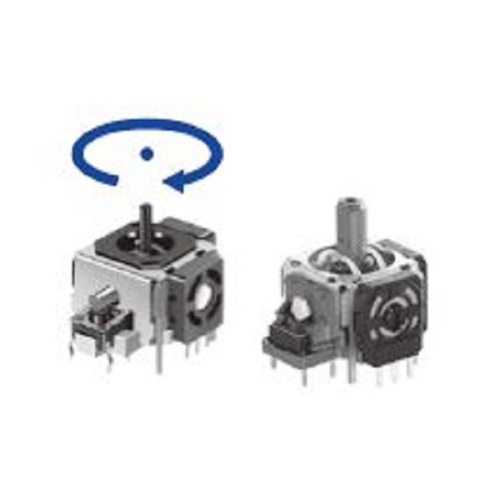

RKJXV1224005 is a ThumbPointer™ (joystick controller), equipped with good space-saving standard and joystick duplex. The operating life of the variable resistor of this product is 2,000,000 cycles, and the operating life of the central pressing part is 500,000 cycles. This product is mostly used for personal audio. You can communicate your needs with us, and we will recommend the most suitable product for you according to your needs.

Product number:RKJXV1224005

Number of operating axes:1 axis

Shaft material:Resin

Joystick reset mechanism:YES

Variable resistor part

Maximum voltage:50V AC, 5V DC

Action angle:23° max in each direction

Law of resistance:B (0B)

Total resistance:10kΩ

Operating life:2,000,000cycles

Central button

Center press:YES

Maximum rating:50mA 12V DC

Stroke:0.4(+0.5, -0.3)mm

Operating life:500,000cycles

Operating temperature range:-10℃ to +70℃

Electrical properties

Direction resolution:Continuously variable

Insulation resistance:100MΩ min. 250V DC

Withstand voltage:250V AC for 1 minute

rated power:0.0125W

Sliding noise:300mV p-p max. by JIS method

Mechanical behavior

Directional force:14±10mN・m

Press force:7.4±3N

Joystick:±5°

Strong operation department

Push and pull direction:98N min. (Push), 50N min. (Pull)

Durability/Operating life

Direction:2,000,000 cycles

Center press:2,000,000 cycles

Environmental resistance

Cold resistance:-30±2℃ for 96h

Heat resistance:80±2℃ for 96h

Humidity resistance:60±2℃, 90 to 95%RH for 96h

Minimum order unit (pcs.)

Japan:1600

Export:1600
