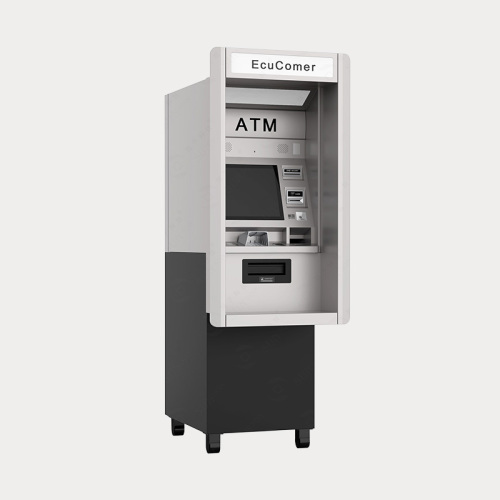

Through The Wall Cash and Coin 2 in 1 Dispenser ATM Machine

S/N

ITEM

SPECIFICATION

I. Mainframe

1

Mainboard

Industrial control motherboard, H81 chip, LGA1150 CPU architecture; 2 DDRIII memory slots; 2 VGA interfaces; 10 USB, 12 RS232 interfaces, two 1000Mb adaptive dual NICs, support TCP/IP protocol, ATX300W power supply; power-on start, timer switch function;

2

CPU

4th Generation Core I5 with clock frequency 3.6GHZ/LGA1150

3

RAM

DDR3 1600MHz 16G

4

Hard Disk

2.5-inch 500G SSD

5

CPU Fan

YES

6

Power Supply

110V-220V/300W

7

DVD Drive

24x speed, SATA interface

II. Multi-media

8

Speakers

2*5W8Ω

9

Amplifier

CCC certified

III. ATM Power Supply

10

Power Distributor

Socket & plug type to be defined by BUYER.

11

12V Power Supply Unit

Rated output power 150W, input voltage 90~132V/180~264V, output voltage 12V, output rated current 8.8A.

12

24V Power Supply Unit

Rated output power 200W, through the switch to select input voltage 90~132V/180~264V, output voltage 24V, output rated current 8.8A.

13

UPS

Backup UPS power supply, 1200VA, 700W, RS232 interface, software monitoring, input and output AC110V/50Hz±1Hz, power-on start, timing switch function, standby time 10-30 minutes

IV. Main Modules

14

Main Screen

19-inch capacitive integrated screen, support multi-touch, display ratio 4:3, VGA, USB interface, the best display resolution 800 * 600, touch screen resolution 4096 * 4096, DC12V

15

Rear Service Screen

10.4 inch capacitive integrated screen, support multi-touch, display ratio 4:3, VGA, USB interface, the best display resolution 800 * 600, touch screen resolution 4096 * 4096, DC12V

16

Front HD Camera

Pinhole, 500W pixels, support WINDOWS, USB interface, COMS

17

Cash Presenter Camera

Pinhole, 200W pixels, support WINDOWS, USB interface, COMS

18

Receipt Printer

DC24V, USB interface, thermal printing, paper width 80mm, CAP-347 movement, full cut, round hole power interface, also with anti-jamming nozzle, paper will run out, black mark detection function

19

Electric DIP Card Reader

Standard RS232 interface, DC12V, two-in-one, support contact IC card, magnetic card reading and writing, magnetic card in line with ISO7810 ID-1, 7811 standard, IC card in line with ISO7816-2 standard, through EMV, PCI certification

20

Encrypted PIN Pad （EPP）with Shield

Standard RS232 interface, through PCI V6.0 international certification, with waterproof, dustproof, vandal and leak-proof, single DES, double DES, 3x DES algorithm, unsealing self-destruct program, with a peek-proof cover

21

2 in 1 Optical Code Reader

USB interface, scanning mode: two-dimensional image type (838 x 640 pixels), support commonly used PDF417 two-dimensional barcode, Datamatrix two-dimensional barcode, QR code, GM code, support to read paper, LCD, mobile phone screen and other media on the bar code information;

22

Fingerprint Reader

USB interface, semiconductor working mode, pixel definition: 700 (DPI), supply voltage: 5.0V +/-.25V, fingerprint ingestion: <1000mA, image acquisition time 0.01s, fingerprint processing time 0.01s,

23

NFC Card Reader

USB interface, DC5V (USB powered), operating frequency 13.56Mz, ISO-7816 compliant A, B and C classes (5V); ISO-14443 compliant A & B class, support Mifxxe S50 S70 card support NFC function, support non-connect IC card transaction function; RF read and write distance: up to 50mm or more;

24

Anti-skimmer Controller

RS232 interface, DC12V, probe reader nozzle

25

Bulk Banknote Dispenser

RS232 interface, AC220V/3A, stack of horizontal banknotes, 4 withdrawal banknote boxes + 1 scrap box, banknote box capacity of 3000 pieces, recycled banknote boxes 250 pieces, support 5, 10, 20, 50 US dollars. Please contact us to confirm support of other currencies.

26

Coin Dispenser

DC24V, RS232 interface, capacity of 1100 coins.

27

Presenter Shutter

YES.

28

SIU Board

RS232, DC12V, control multi-channel access control switch, support vibration alarm, thermal induction alarm

29

Door Access Control Switch

YES

30

Body Sensor for Screen Saver

RS232 interface, DC12V, infrared sensing, distance 1 meter, when the human body is close to the ATM machine, the machine is in a working state, and transmitted to the background through the software, when the human body leaves the ATM machine, the machine is in advertising mode.

31

Awareness Mirrors

YES

32

Alarm Unit

YES

33

Digital Combination Lock

YES

34

LED Indicators

YES

35

Genuine Operating System

Official Windows 10, 64-bit

36

Cooler Fan

120*120*20mm

V. Accessories & Others

37

Metal Wares

YES

38

Plastic/Rubber Wares

YES

39

Cables & Wires

YES

40

Cabinet

Safe made of 8mm steel plate

41

Package

YES, good for sea transportation.
