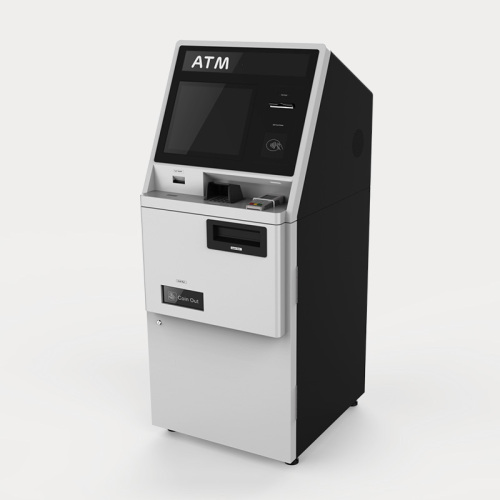

Cash and Coin Withdraw ATM for Supermaket

S/N

ITEM

SPECIFICATION

I. Mainframe

1

mainboard

Industrial control motherboard, H81 chip, LGA1150 CPU architecture; 2 DDRIII memory slots; 2 VGA interfaces; 10 USB, 12 RS232 interfaces, two 1000Mb adaptive dual NICs, support TCP/IP protocol, ATX300W power supply; power-on start, timer switch function;

2

CPU

4th Generation Core I5 with clock frequency 3.6GHZ/LGA1150

3

memory

DDR3 1600MHz, 8G

4

hard disk

2.5 inch, 256G SSD

5

CPU fan

YES

6

Host power supply

110-220V/300W

II. Multi-media

7

Speakers

2*10W4Ω

8

Amplifier

SUNSON Audio V1.4

III. ATM Power Supply

9

Power Distributor

Socket & plug type to be defined by BUYER.

10

12V Power Supply Unit

Rated output power 150W, input voltage set through switch, 90~132V/180~264V, output voltage 12V, output rated current 8.8A.

11

24V Power Supply Unit

Rated output power 200W, through the switch to select input voltage 90~132V/180~264V, output voltage 24V, output rated current 8.8A.

12

UPS

Backup UPS power supply, 1000VA, 700W, RS232 interface, software monitoring, input and output AC110V/220V, 50Hz/60Hz ±1Hz, power-on startup, timing switch function, standby time 10-30 minutes.

IV. Main Modules

14

Capacitive Touch Screen

17 inch capacitive integrated screen, VGA interface, DC12V, display resolution 1024*768, capacitive touch integrated, USB interface, touch resolution 4096* 4096, passed CE certification.

15

Encrypt PIN Pad

Standard RS232 interface, PCI V3.0 or above compliant, waterproof, dustproof, anti-vandal and anti-leakage, single DES, double DES and triple DES Algorithm, unpacking self-destruct program.

16

Coin Dispenser

DC24V, RS232 interface, capacity of 1100 coins. Please contact us to confirm your local coins compatibility.

17

NFC Card Reader

USB interface, DC5V (USB powered), operating frequency 13.56Mz, ISO-7816 compliant A, B and Class C (5V); ISO-14443 compliant A & B class with support for Mifxxe S50 /S70 cards; support non-contact IC card transaction function; RF read and write distance: up to 50mm;

18

DIP Card Reader

Standard RS232 interface, DC12V, two-in-one, support contact IC card, magnetic card reading and writing, magnetic card in line with ISO7810 ID-1, 7811 standard, IC card complies with ISO7816-2 standards, EMV and PCI certified.

19

Local Resident ID Card Reader

Optional, provided by the buyer.

20

Banknote Dispenser Module

RS232 interface, AC110V/220V, 3A, long side banknotes presenter, 5 withdrawal boxes with capacity of 3,000 bills and reject banknote box with capacity of 250. Please contact us to confirm your local coins compatibility.

21

Slip Printer

USB interface, DC24V2A, thermal printing, paper width 80MM, automatic paper cutting, paper diameter 80mm.

22

Alarm Unit

YES.

23

LED Indicators

YES.

24

SIU Interface Board

RS232 interface, DC12V.

25

Mechanical Combination Lock

YES.

26

Camera

Pinhole, 2 million pixels 480P, support WINDOWS, Android system, USB interface, COMS.

27

Presenter Shutter

YES, with preventive finger-clamping mechanism.

28

2D Barcode Reader

RS232 communication, scanning mode: 2D image type (838 x 640 pixels), support for commonly used PDF417 2D barcode, Datamatrix 2D barcode , QR Code, GM Code, support to read the barcode information on various media such as paper, LCD, mobile phone screen, etc., with 1.6mm tempered glass protective cover.

29

Access Control Switch

YES.

30

WIFI Module

USB port.

31

Audio Switching Control

Switch between speakers and external headphones.

32

Cooling Fans

Dual 120*120*25mm

V. Accessories & Others

37

Metal Wares

YES

38

Plastic/Rubber wares

YES

39

Cables & Wires

YES

40

Cabinet

Safe made of 8mm steel plate

41

Package

YES, good for sea transportation.
