Community Charity Giving Drop Box

$5000.00 - $50000.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	5000 per year
Supply Ability:	500 standalon machines per month, or 5 sets per month
Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,EXW,CFR
HS Code:	8472901000
Transportation:	Ocean,Land,Air
Port:	SHENZHEN

Product Description

Community Charity Giving Drop Box

I. Introduction:

Community Charity Giving Drop Box is specially developed for Charity Donations with banknote depositor, coin acceptor and valuable goods acceptor safe. The banknote accepted will be kept in a money bag with mixed denominations, the coins will be sorted. A donation list receipt will be printed out upon request. The standard model supports cash bill donation, metal coin donation, jewelries and other valuables donation.

The banknote storage bag has the capacity of 10,000 to 20,000 bills or even larger according to requirements. The coin sorter supports 4 denominations, and the valuables donation inlet will allow maximum 1 foot by 1 foot square box to be accepted. The donated money and goods are kept in safes made of 8mm steel plate.

II. Application Scenario：

Charity Donations, which may be deployed in Mosques, Churches, Temples, Red-cross offices or other public welfare sections.

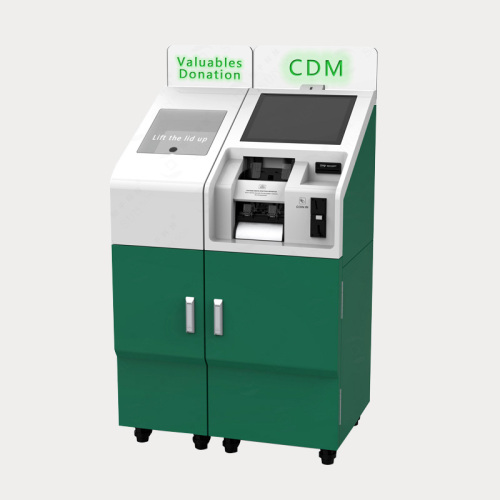

III. Image:

100 Donation Box B03

IV. Specification:

S/N	ITEM	SPECIFICATION
	I. Mainframe
1	Motherboard	Industrial control motherboard, H81 chip, LGA1150 CPU architecture; 2DDRIII memory slots; 2VGA interfaces; 10USB, 12RS232 interfaces, dual 1000Mb auto-adaptive internet cards, support TCP/IP protocol, ATX300W power supply, auto-startup when power on, timer-controlled power on/off.
2	CPU	44th Generation Core I5 with main frequency 3.6GHZ/LGA1150
3	RAM	DDR3 1600MHz 16G
4	Hard Disk	2.5-inch 500G SSD
5	CPU Fan	CCC certified
6	AC Power Supply	110V-220V/300W
7	Genuine Operating System	WIN10 64-bit
	II. Multi-media
8	Speakers	5W8Ω
9	Amplifier	CCC certified
	III. Power Supply
10	Power Distributor	Mexico standard compliant.
11	12V Power Supply Unit	Rated output power 150W, input voltage 90~132V/180~264V, output voltage 12V, output rated current 8.8A.
12	24V Power Supply Unit	Rated output power 200W, through the switch to select input voltage 90~132V/180~264V, output voltage 24V, output rated current 8.8A.
13	UPS	Backup UPS power supply, 500VA, RS232 interface, software monitoring, input and output AC110V/220V, 50/60Hz±1Hz, auto-startup when power on, timer-controlled power on/off, working time10-30 minute.
	V. Main Modules
14	Capacitive Touch Screen	19 inch capacitive touch integrated screen, support multi-touch, display ratio 4:3, VGA, USB interface, the best display resolution 800600, touch screen resolution 40964096, DC12V.
15	Front HD Camera	Pinhole, 500W pixels, support WINDOWS, USB interface, COMS
16	Receipt Printer	DC24V, USB interface, thermal printing, paper width 80mm, CAP-347 movement, full cut, round hole power interface, also with anti-jamming nozzle, paper will run out warning with black mark detection function.
17	Cash Deposit Module	USB interface, AC100V-240V, inlet capacity of 400 sheets, cash return port capacity support 30-50 sheets, scratch port capacity of 200 pieces, banknote counting speed 800/1000 sheets / min (MIX mode); support mixing point, denomination clearing, face-to-face clearing, counting mode; support remote upgrade software; support white light image, infrared reflection image, infrared penetration image, fluorescence detection, security line counterfeit detection, serial number counterfeit detection, replay detection, serial number magnetic counterfeit detection and other 8 kinds of counterfeiting methods. Please contact to confirm whether YOUR currency is supported or not.
18	Banknote Bag	The banknote bag has a capacity of 20,000 pieces, which supports waterproofing, fire prevention, and the card blocking function of the banknote bag.
19	Coin Acceptor	RS232 interface, quad channel sorter.
20	Valuables Donation Inlet	1*1 foot square hole.
21	SIU Board	RS232, DC12V, multi-channel access control, support vibration alarm, fire alarm.
22	Access Control Switch	YES.
23	Alarm Unit	YES.
24	Mechanical Combination Lock	YES.
25	LED Indicators	YES.
26	Cooling Fan	12012020mm.
	V. Accessories & Others
27	Metal Wares	YES.
28	Plastic/Rubber Wares	YES.
29	Cables & Wires	YES.
30	Cabinet & Safe	The safe is made of 8mm steel plate.
31	Package	Wooden case good for air/sea transportation.

Note: The above specifications are for reference, and subject to changes and upgrade without prior notice.
