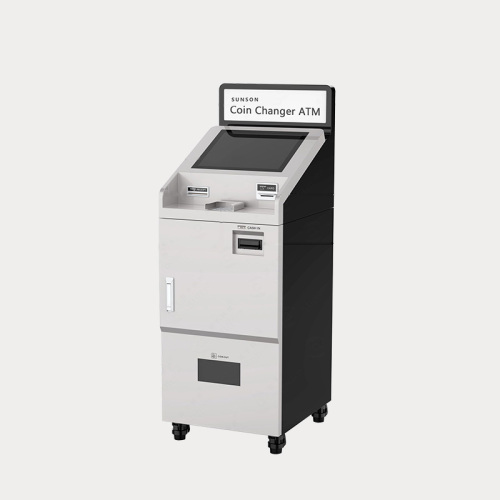

Coin Changing Machine in Grocery Shop

S/N

ITEM

SPECIFICATION

I. Mainframe

1

Mainboard

Industrial control motherboard, H81 chip, LGA1150 CPU architecture; 2*DDRIII memory slots; 2*VGA interfaces; 10*USB, 10*RS232 interfaces, dual 1000Mb adaptive internet cards, support TCP/IP protocol, ATX300W, auto-start when power-on, timer switch function.

2

CPU

Core I3 4130.

3

RAM

DDR3, 1600MHz, 8G.

4

Hard Disk

2.5-inch SSD, 256G.

5

CPU Fan

YES.

6

Main Power Supply

110/220V, 300W.

II. Multi-media

7

Speakers

2*10W4Ω

8

Power Amplifier

YES

III. ATM Power Supply

9

Power Distributor

Socket & plug type to be defined by BUYER.

10

12V Combined Power Supply

Rated output power 150W, switch selectable input voltage 90~132V/180~264V, output voltage 12V, output rated current 12.5A.

11

24V Combined Power Supply

Rated output power 200W, through the switch to select input voltage 90 ~ 132V / 180 ~ 264V, output voltage 24V, output rated current 8.8A.

12

UPS

Backup UPS power supply, 1000VA, RS232 interface, software monitoring, input and output AC220V/50Hz±1Hz, power-on start, timing switch function, standby time 10-30 minutes, CQC certified.

IV. Main Modules

13

Capacitive Touch Screen

19 inch capacitive integrated screen, support multi-touch, display ratio 4:3, HDMI, USB interface, the best display resolution 1024 * 768 , touch screen resolution 4096*4096, DC12V.

14

Coin Dispenser Module

DC24V, RS232 interface, capacity of 800 coins, support coin box capacity full alarm function. Please contact us to confirm your currency support.

15

Banknote Acceptor

RS232 interface, DC24V, banknote box capacity 1200 bills. Please contact us to confirm your currency support.

16

Electronic Card Reader

Standard RS232 interface, DC24V, two-in-one, support contact IC card, magnetic card reading and writing, with electric gate, magnetic card in line with ISO7810 ID-1, 7811 standard, IC The card is ISO7816-2 compliant and EMV or PBOC certified.

17

EPP

Standard RS232 interface, through PCI V3.0 or above international certification, with waterproof, dustproof, vandal and leak-proof, single DES, double DES, 3 times DES Algorithm, unpacking self-destruct program.

18

Access Control Switch

YES.

19

Mechanical Combination Lock

YES.

20

SIU Board

RS232 interface, DC12V.

21

Genuine Operating System

64-bit, Windows 10

22

Camera

Pinhole, 200W pixels 480P. Support WINDOWS, Android system, USB interface, COMS

23

Fan

120*120*20mm

24

WIFI Antenna

Patch with 1M wire.

V. Accessories & Others

25

Metal Wares

YES

26

Plastic/Rubber wares

YES

27

Cables & Wires

YES

28

Cabinet

Safe made of 8mm steel plate

29

Package

YES, good for sea transportation.
