Product Description

Cash and Coin Withdraw ATM for Bus Stations

I. Brief Introduction:

Cash and Coin Withdraw ATM for Bus Stations is specially designed for scenarios where customers need to change their paper banknotes into metal coins. The Standard model also consists of a standard bank card reader which allows user to debit from the bank account and have the coins out. The coin changer is suitable for in-door deployment. It is kindly reminded that the potential buyers need to contact us to confirm whether or not your currencies are supported.

II. Application Scenarios:

Bank offices, cash points, transportation hubs, supermarkets, gas stations, etc.

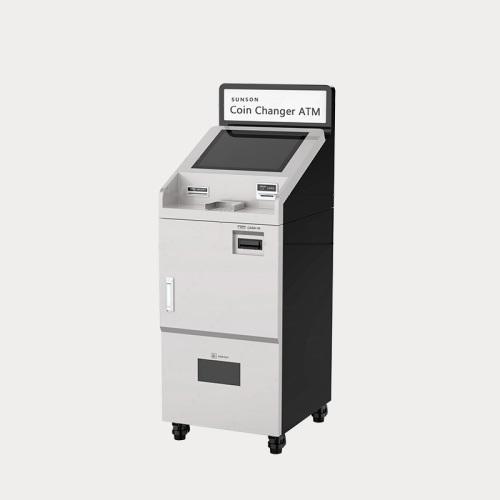

III. Product Images:

IV. Technical Specifications:

S/N	ITEM	SPECIFICATION
I. Mainframe
1	Mainboard	Industrial control motherboard, H81 chip, LGA1150 CPU architecture; 2DDRIII memory slots; 2VGA interfaces; 10USB, 10RS232 interfaces, dual 1000Mb adaptive internet cards, support TCP/IP protocol, ATX300W, auto-start when power-on, timer switch function.
2	CPU	Core I3 4130.
3	RAM	DDR3, 1600MHz, 8G.
4	Hard Disk	2.5-inch SSD, 256G.
5	CPU Fan	YES.
6	Main Power Supply	110/220V, 300W.
II. Multi-media
7	Speakers	2*10W4Ω
8	Power Amplifier	YES
III. ATM Power Supply
9	Power Distributor	Socket & plug type to be defined by BUYER.
10	12V Combined Power Supply	Rated output power 150W, switch selectable input voltage 90~132V/180~264V, output voltage 12V, output rated current 12.5A.
11	24V Combined Power Supply	Rated output power 200W, through the switch to select input voltage 90 ~ 132V / 180 ~ 264V, output voltage 24V, output rated current 8.8A.
12	UPS	Backup UPS power supply, 1000VA, RS232 interface, software monitoring, input and output AC220V/50Hz±1Hz, power-on start, timing switch function, standby time 10-30 minutes, CQC certified.
IV. Main Modules
13	Capacitive Touch Screen	19 inch capacitive integrated screen, support multi-touch, display ratio 4:3, HDMI, USB interface, the best display resolution 1024 * 768 , touch screen resolution 4096*4096, DC12V.
14	Coin Dispenser Module	DC24V, RS232 interface, capacity of 800 coins, support coin box capacity full alarm function. Please contact us to confirm your currency support.
15	Banknote Acceptor	RS232 interface, DC24V, banknote box capacity 1200 bills. Please contact us to confirm your currency support.
16	Electronic Card Reader	Standard RS232 interface, DC24V, two-in-one, support contact IC card, magnetic card reading and writing, with electric gate, magnetic card in line with ISO7810 ID-1, 7811 standard, IC The card is ISO7816-2 compliant and EMV or PBOC certified.
17	EPP	Standard RS232 interface, through PCI V3.0 or above international certification, with waterproof, dustproof, vandal and leak-proof, single DES, double DES, 3 times DES Algorithm, unpacking self-destruct program.
18	Access Control Switch	YES.
19	Mechanical Combination Lock	YES.
20	SIU Board	RS232 interface, DC12V.
21	Genuine Operating System	64-bit, Windows 10
22	Camera	Pinhole, 200W pixels 480P. Support WINDOWS, Android system, USB interface, COMS
23	Fan	12012020mm
24	WIFI Antenna	Patch with 1M wire.
V. Accessories & Others
25	Metal Wares	YES
26	Plastic/Rubber wares	YES
27	Cables & Wires	YES
28	Cabinet	Safe made of 8mm steel plate
29	Package	YES, good for sea transportation.

Note: The above specifications are for reference, and subject to changes and upgrade without prior notice.
