Face Recognition Thermal Body Temperature Detector

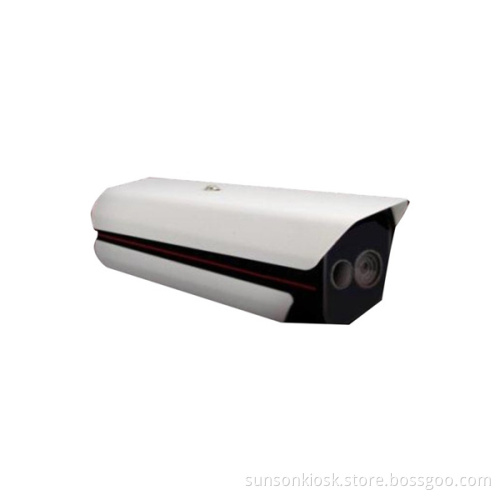

SUNSON Face Recognition Thermal Body Temperature Detector(Model: SKTD1054)can be installed in front of any building to provide a safe work environment for people .The contactless thermal imaging sensor tracks the maximum temperature reading of each person. The system sets an alarm when the abnormal temperature occurs.
A：Main Features
1. Accurate temperature measurement
Using high resolution focal plane detector, the temperature measurement accuracy can reach 0.3 ℃.
2. Visible and infrared double light fusion
The visible light camera and Infrared camera dual light fusion technology, Pair the visible light camera with the face camera
3. Identification
High precision face recognition technology is used to quickly identify the identity information of the tested person and upload it to the system platform in real time
4. Intelligent temperature Point Selection
Deep learning technology is used to automatically locate the face and select the appropriate temperature point for temperature measurement.
5. Overtemperature Alarm
When the temperature of the measured object exceeds the normal threshold, real-time alarm and photo will be taken and uploaded to the system platform.
6. Human Face Restore
It can restore the face covered by the mask, which is convenient for field personnel to identify the tested persons
B: Technical Specification
|
Module Name |
Specification |
|
Sensor |
Uncooled infrared focal plane sensor 384*288 pixels |
|
Working Waveband |
8um~14um |
|
Accuracy |
±0.3℃@circumstance temperature10~35 ℃ including black body |
|
Temperature Measurement Range |
30 ℃ ~50 ℃
|
|
Intelligent temperature detection |
Intelligent selection of 5 mobile temperature measurement points |
|
Visible light parameter Sensor |
1/2.8” SONY Exmor CMOS sensor 1920*1080 pixels |
|
Main Function |
Automatic aperture, automatic white balance, backlight compensation, Automatic shutter and illumination (color/black and white) since Dynamic/manual conversion
|
|
Encoding Way |
H.264 BP/MP/HP/MJPEG four coding algorithms optional |
|
Intelligence |
Support face detection, face recognition, face masking Recovery Intelligent algorithms |
|
Fusion |
Support visible and infrared scene alignment and target matching |
C: Product Advantages
1. Non-contact: the monitored personnel can complete the monitoring through the field of view of the thermal imaging equipment, without contact with each other during the whole process to avoid cross-infection.
2. Quick response: 40 ms response, up to 20 people of multiple and check, intelligent temperature measurement.
3. Efficient intelligence: the use of visible light, infrared dual-light fusion detection technology, to ensure the accuracy and reliability of the test, low requirements for the test target, can intelligently capture the face and temperature point.
4. High precision temperature measurement: the built-in facial temperature lattice correction algorithm, additional black body proofreading, temperature measurement accuracy ±0.3℃.
5. Face masking and reconstruction technology: using the neural network technology, the masking part of the face reconstruction and reconstruction, to assist in the comparison of human witnesses.
D: Application Scenario
It can be widely used in the public places like, airports, stations, subway stations, hospitals, banks, supermarkets, schools, government offices, factories, construction sites, conference centers, all kinds of centralized office places etc.
