Product Description
Product Description
Established in 2002, Shenzhen TitanFlying Technology Co., Ltd (TTF) is located in Shenzhen University Town, known as the Silicon Valley of China. TTF has more than 20 years' experience on mechanical processing.
Low Noise, Stable & Reliable
Dustproof, Waterproof & Cooling
Extensive Compatibility
Anti- corrosion Coil
24v Brushless Motor Series
With standardization of UAV motor industry segment, the requirements of user are growing rapidly. TTF, is now releasing P series motors for agricultural application with powerful thrust and high performance after tremendous tests. P series 24 volt brushless motors are capable of working in a demanding environment with reliability and long service life.
More Thrust
Weight decrease is achieved by optimizing stator structure while maintaining its mechanical strength. Manual winding helps increase slot fullness for more thrust.
Low Noise, Stable & Reliable
24N28P/36N42P configuration reduces the strongest drone motors price in operation for motor wearing diminution, service life extension and noise debasement. P series motors run more smoothly than motors with general configuration at maximum throttle.
Impact Resistant
Optimized machining precision and motor structure with motor core part protection effectively avoids cases as to the failure in motor utilization after crash and impact.
Dustproof, Waterproof & Cooling
Closed exterior and lattice structure take account of both dustproof, waterproof and cooling effects which handles usage in various environment.
Anti- corrosion Coil
Special coating gets the coil free of corrosion from pesticides.
Extensive Compatibility
There are M3 and M4 mounting holes on the motor base for different frames.
P series quadcopter drone motors are not confined in the plant protection field. It can also be employed on VTOL planes.
P series motor P6215-175KV P7115-135KV P8320-120KV
CF Prop & Max thrust 22*75: 9.46kg
21*70: 9.15kg 26*80:10.85kg
26*85: 10.93kg 30*80: 16.62kg
30*95:17.14kg
ESC 80A 80A 100A
Volts 12S 12S 12S
AUW Quadcopter: 16kg
Hex-copter: 25kg
Oct-copter: 33kg Quadcopter: 21kg
Hex-copter: 30kg
Oct-copter: 38kg Quadcopter: 33kg
Hex-copter: 48kg
Oct-copter: 62kg
Agriculture drone motor P6215
Model Volts(V) Prop Amps(A) Thrust(gf) Watts(W) Efficiency(G/W) Temperature
P6215-175KV 45V/12S 21*70 7.2 2860 320 8.95 64℃
13.2 4400 586 7.51
21.2 6280 941 6.67
37.6 8880 1669 5.32
37.8 9050 1678 5.39
22*75 7.8 3170 346 9.15 71℃
14.2 4710 630 7.47
22.6 6570 1003 6.55
40.7 9310 1807 5.15
40.5 9460 1798 5.26

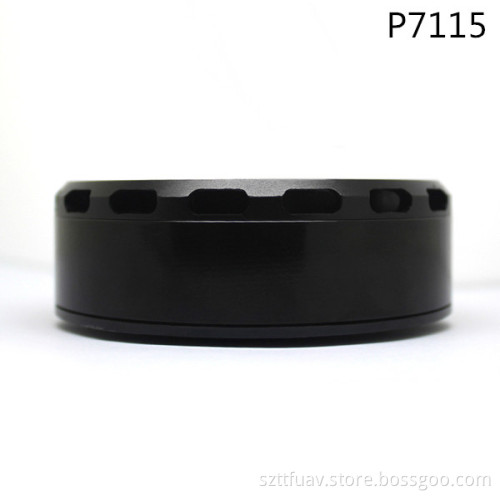

Agriculture drone motor P7115
Model Volts(V) Prop Amps(A) Thrust(gf) Watts(W) Efficiency(G/W) Temperature
P7115-135KV 45V/12S 26*80 6.6 2950 293 10.07 64℃
14.5 5190 644 8.06
26.8 7940 1190 6.67
41.3 10520 1834 5.74
42.1 10850 1869 5.80
26*85 6.7 3140 297 10.56 75℃
14.8 5380 657 8.19
26.8 8200 1190 6.89
41.1 10520 1825 5.76
41.9 10930 1860 5.88
Agriculture drone motor P8320
Model Volts(V) Prop Amps(A) Thrust(gf) Watts(W) Efficiency(G/W) Temperature
P8320-120KV 45V/12S 30*95 12.5 5460 555 9.84 76℃
20.1 7510 892 8.42
32.1 10280 1425 7.21
45.4 12950 2016 6.42
66.5 17140 2953 5.81
30*80 12.7 5270 564 9.35 60.5℃
19.5 7110 866 8.21
33.2 10280 1474 6.97
46.1 12740 2047 6.22
67.2 16620 2984 5.57
