10.1-55 Inches Touch Screen Monitor Industrial Monitors
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Transportation:
- Ocean, Land, Air
- Port:
- ShenZhen, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000000 |
| Supply Ability: | 1000000 |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | ISO9001 And ISO14001 |
| Transportation: | Ocean,Land,Air |
| Port: | ShenZhen,HongKong |
Open Frame Capacitive Touch Monitor
Product Description
Our industrial touch screen monitor provides a perfect solution for customers worldwide who need reliable touch display products.They have excellent image resolution and light transmission,enabling stable,drift-free operation and precise touch response.The sample has global regulatory agency certification,as well as excellent quality assurance and after-sales service.From product design to production,to software development and product testing, all the processes are under the responsibility of BBSTouch,pursuing the perfect operation of the product,and have passed (more than 20) strict reliability tests.Our touch monitors possess the authority agency CE,FCC,CB,UL,HDMI certification and our company has passed the ISO9001 quality system and ISO14001 environmental system certification.
Product Deatures
♦ Industrial-grade LCD screen and capacitive touchscreen panel.
♦ Waterproof,dustproof and explosion-proof :IP65 (front) IK08 (front) .
♦ Surface treatment:AG AR AF (optional).
♦ Metal shell,anti-shock and anti-vibration,strong and durable.
♦ Good sealing performance,and has passed EMC anti-interference testing.
♦ Dense ventilation holes on the back, efficient heat dissipation.
♦ Uses the most advanced LED backlight technology,save energy and power.
♦ Built by professional team,stable and reliable.
♦ Producing superior image clarity,resolution,transparency, good accuracy.
♦ The model has a long life cycle period and can supply long-term demands.
♦ Running 24 hours a day.
♦ Support customized services.
Product Parameters
| Product Name: | Open Frame Capacitive Touch Monitor | Diagonal Dimension: | 21.5 Inch Diagonal |
| Model： | GT-TM-2152C-CTW-HD | Display Type： | Active Matrix TFT LCD, LED Backlight |
| Touch Technology: | Projected Capacitive | Touch Points： | 10-point |
| Aspect Ratio: | 16:9 | Display Colors: | 16.7M |
| Active Area Dimensions: | 476.6mm(H) x 268.1mm(V) | Display Sizes: | 532mm(W)x319mm(H), Thickness: 47 mm) |
| Resolution(pixel): |
1920x 1080 |
Contrast Ratio: | 1000: 1(Typ.) |
| Brightness (Standard): | 250 nits(Typ.) | Response Time: | 5msec |
| MTBF: | 50,000 hours | Video Formats: | VGA,DVI,HDMI |
| Power Consumption： | Display Only: 13.5W(Typ.) | Warranty: | 1 Year |
| Temperature: | Operating: 0°C to 40°C | Humidity: | Operating: 20% to 80% (No Condensation) |
| Temperature: | Storage: -20°C to 60°C | Humidity: | Storage: 10% to 90% (Non-condensing) |
| Waterproof, Dustproof, Explosion-proof： | IP65 (front) IK08 (front) | Surface Treatment: | AG, AR, AF (Optional) |
| Mounting Options: | VESA Mounting,Open Bracket Mounting | Agency Approvals: | UL,FCC,CE,CB,HDMI |
| Input Video Connector: | Female Head DE - 15 Connector,Female Head DVI - D, Dual - Link Connector,Female Head HDMI Connector. | ||
| Power: | External DC,Input Voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS，External DC, Input Voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS，(For All in one PC) - Type: DC Cartridge Receptacle; Cartridge ID: 5.5 mm(±0.3 mm; Needle OD: 2.0 mm (+0.0 -0.1 mm); Cartridge Depth: 8.0 mm (±0.3 mm);Power Connector (On Power Adapter) - Type: DC Cartridge Plug: Cartridge OD:5.5 mm (± 0.1mm); Needle Inner Diameter: 2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm). | ||
| User Controls: | OSD Button: Menu, Up, Down, Select, Power; OSD: Contrast, Brightness,Horizontal / Vertical Bits Clock, Phase, Call Default, Language (English,German, Spanish, Japanese,French); OSD Fail / Active: Power, OSD Menu. | ||
Product Installation
TM-2152C-CTW-HD touchscreen monitor is equipped VESA mounting and an external mounting bracket.Both installation methods are simple and easy to operate,allowing you to flexibly install in different scenario.
Product Customizable/Display Port/Power Plug
We provides a wide range of customization options to meet your requirements,including product size or structure,glass cover surface treatment AG, AF, AR ,LCD panel brightness(can choice 450nits,700nits,1000nits,1500nits,2000nits),display ports（can choice VGA,DVI,HDMI,DP or more).The power plug is selected according to different styles of each country.

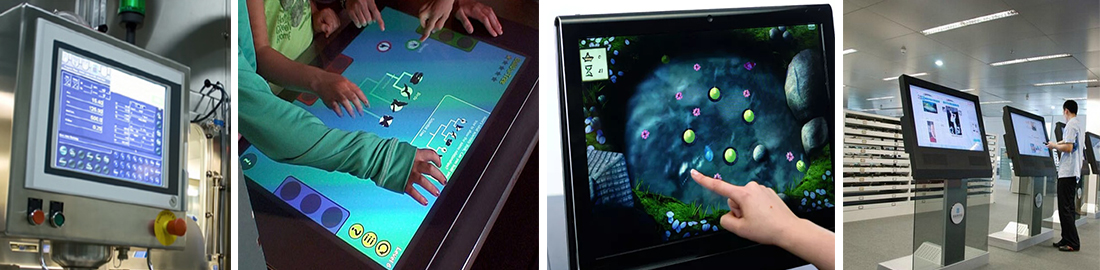

Product Application
We provides you with touch application solutions,whether it is information query,industrial automation,self-service,gaming and entertainment industries,our acpacitive touch monitor can do the job.
Other Products
We have our own brand -BBSTouch,already established full-automatic production line and professional sales&after-sales team.In addition to a variety of touch screen monitor,we also supply 4 wire resistive touch screen,5 wire resistive touch screen,capacitive touch screen,interactive touch foil,touch LCD module,infrared touch Frame,touchscreen computer and other touch products.
