15 Inch Multi Point Infrared Touchscreen
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- ShenZhen, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000000 |
| Supply Ability: | 1000000 |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | ISO9001 And ISO14001 |
| HS Code: | 8548900030 |
| Transportation: | Ocean,Land,Air |
| Port: | ShenZhen,HongKong |

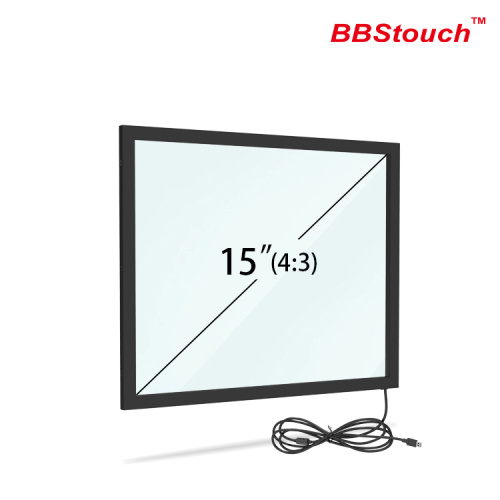

Infrared Touch Screen TK Series（15 inch）
Our IR touch screen is a high end ,multi point infrared touchscreen technology with perfect combination of tradition and innovation,Our touch screen has the features of fast reaction speed, strong anti-environment light ability, good stability and easy integration.This 15 inch infrared touch screen features a unique ultra-narrow side, ultra-thin shape design, infrared sensing principle, aluminum alloy surface spray oxidation, overall delicate, simple, generous, multi-touch. Simple operation, USB connection, plug and play.
Product Overview
TK series infrared touch screen is an economical product newly developed by BBSTouch, and has its own research and development procedures, the latest algorithm, high cost performance, 10-point touch and other characteristics, can meet various customization needs, mainly used in ATM, touch display, Self-service terminal, military control system, industrial control field, etc.
The company has passed the ISO9001 quality system and ISO140001 environmental system certification. The products are assembled in a class 1000 dust-free workshop. During the production process, they pass the 24-hour aging and 100% IQC, OQC testing to ensure product quality.
Product Show
Engineering Drawing ：15 inch,GT-IR-TK15
Product Advantages
◇ Vandal proof, wear-resistant;
◇ Maintenance free, longer life expectancy;
◇ Fault tolerance design to ensure reliability;
◇ Versatile touch object;
◇ Super transparency;
◇ Integrated controller;
◇ Gesture support for TK-series;
◇ Operable in various light conditions, indoor and outdoor.
Product Parameters
| Product Name: | Infrared Touch Screen TK Series | General Sizes: | 15"-23.6" |
| Material： | Aluminium Frame+ Tempered Glass | Transparency: | > 92% |
| Touch Resolution: | Interpolated 32768 X32768 | Input Method: | Finger or Touch Pen |
| Touch Object: | >5mm In Diameter, IR Opaque | Response Speed: | <10ms |
| Durability: | Unlimited Number Of Touches | Operating Voltage: | DC 5V ±5% |
| Touch Points: | 10 | Operating Current: | <200mA |
| About Noies: | No Noies | Interface: | USB,plug and play |
| Transmission Speed: | 480Mbps | Altitude: | 3,000m |
| Life Time: | 1 Year | Certificates: | CE, FCC,RoHS |
| Touch Surface: | Standard: 3mm Tempered Glass Embedded, AG/AR Glass Optional | ||
| Vandal-Proof: | Meet Ball Drop Test (1.04kg, 63.5mm Diameter Ball Dropped From Height Of 1m) | ||
| Temperature: | Operating: –10°C to 40°C; Storage: –20°C to 60°C | ||
| Humidity: | Operating: 0 to 85%,Storage: 10 to 90% (RH Non-condensing) | ||
| Operation System: | Windows ， Linux ，Android，Mac | ||
Product Customizable
Other Products
We have our own brand -BBSTouch,already established full-automatic production line and professional sales&after-sales team.In addition infrared touch screen,we also supply 4 wire resistive touch screen, 5 wire resistive touch screen,capacitive touch screen,interactive touch foil,touch monitor, infrared touch frame,rametouch all-in-one PC and other touch products.
