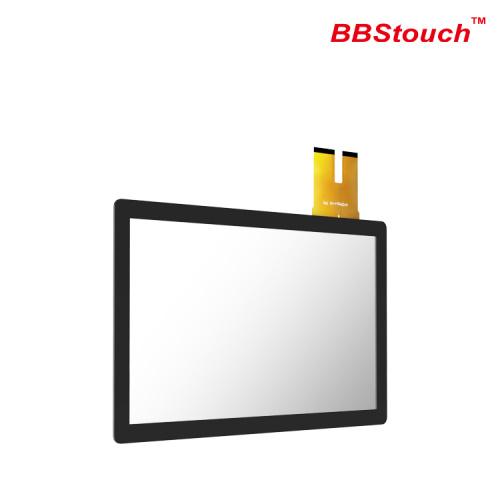

13.3" Windows Capacitive Touch Screen Display Device
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- ShenZhen, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 1000000 |
|---|---|
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Transportation: | Ocean,Land,Air |
| Port: | ShenZhen,HongKong |
Capacitive Touch Screen
If you have a touch screen device, either a laptop or tablet, you’ll be glad to hear that Windows is designed, to a great degree, to be used with a touchscreen. What kind of systems are our touch screens suitable for?Our capacitive touch screen support Windows ,Mac,Linux ,Android systems.A touch screen is an electronic visual display capable of detecting and locating a touch over its display area. This is generally referred to as touching the display touch screen with a finger or hand. This technology most widely used in computers, user interactive machines, smartphones, tablets, etc to replace most functions of the mouse and keyboard.
Product Overview
Projection capacitive touch screen technology put a grid of ultra-thin sensors integrated into the glass that covers the screen.When a finger or stylus is placed on a glass panel, touch is detected if the electronic properties of the sensor grid change.The capacitive panel touch screen is sensitive to touch through the electric field of human body. It is not interfered by light and radiation. Its surface is water-proof, oil-proof and dust-proof.
Product Quality
Our PCAP touch screens are based on proven projection capacitive touch technology, the preferred solution for applications that demand reliability, input flexibility, and contamination resistance. The capacitive touch screen work with standard EETI controller/chip solutions and drivers under a wide variety of operating systems, and are available in a set of standard products as well as customized designs. GreenTouch capacitive touch screens are available with proprietary technology to deliver a touch response that is drift-free and accurate in high-use applications. It's designed to be integrated into almost any bezeled application foreliability and quality.
Product Advantages
◇ Can withstand more than 50 million points,long life time;
◇ High definition ,4096x4096 resolution;
◇ High accuracy and sensitivity，fast response;
◇ No froce limited,high transmittance;
◇ Wonderful appearance and good electrostatic discharge;
◇ USB interface,simple operation;
◇ Water-proof, fog-proof,oil-proof and dust-proof;
Product Details
Product Parameters
| Product Name: | 13.3" Capacitive Touch Screen | Model： | CTP-Y13.3A-1 |
| Outline Size： | 323.4 x 195（mm） | View Area： | 293.4x 165（mm） |
| Available Size: | 10.1"-65" | Touch Points: | 10 points |
| Structure: | Cover glass+Sensor Glass | TP Thickness: | 2.0-4.8mm |
| Chip Solution: | EETI/ILITEK/WEIDA | Controller: | USB 2.0 (full speed) |
| Ratio: | 16:9 | Transparency: | ≥99% |
| Surface Hard: | 7H | Power Supply: | USB 5V |
| Operating System: | Windows,Linux and Android,Mac | Response Time: | <10ms |
| Working Environment: | -20℃~+60℃,≤90%RH | Stroage Environment: | -30℃~+70℃,≤90%RH |
| Driver: | No need(usb plug and play) | Warranty: | 1 year |
Engineering Drawing :GT-CTP-Y13.3A-1
Product Customizable
Product Packaging
Product Applications
POS terminal,gaming equipment,self-service solution,interactive digital signage,healthcare/medical equipment,traffic information ,self-checking solution,industrial/factory automation/industrial tablet.
Other Products
We focus on touch application since established.Our products widely acclaimed from the indoor or outdoor customer because of our top quality products.In addition capacitive touch screen, we also supply 4 wire resistive touch screen,5 wire resistive touch screen,infrared touch screen,infrared touch frame,interactive touch foil,touch monitor,touch all-in-one PC and other touch products.
