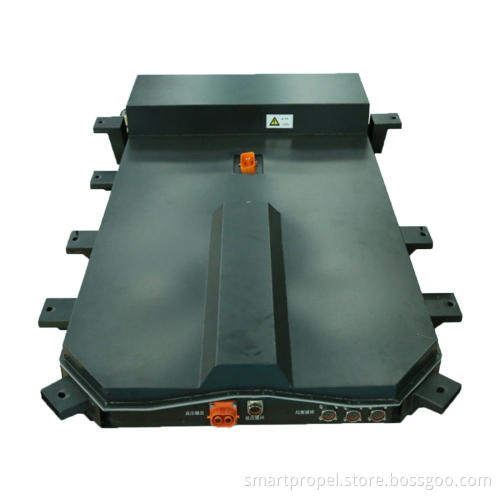

144V 200AH Electric Vehicle Lithium Ion Battery Pack
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
| ELECTRICAL SPECIFICATIONS | |
| Nominal Voltage | 144V |
| Nominal Capacity | 200Ah |
| Energy | 28800Wh |
| Series and Parallel Connection | 40S8P |
| Resistance | ≤25 mΩ |
| Efficiency | ≥99% |
| Cycle Life | ≥800 cycles @80%DOD |
| Self Discharge | <3% per Month |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 1600*191*245 mm |
| Weight | Approx.160KG |
| Chemistry | NCM/Li(NiCoMn)O2 |
| Cell Type | Pouch Cell |
| Case Material | Metal |
| Enclosure Protection | IP65 |
| CHARGE & DISCHARGE SPECIFICATIONS | |
| Standard Charge Current | ≤40A |
| Max Charge Current | ≤100A |
| Continuous discharge current | ≤ 100A |
| Pulse discharge current | ≤200A |
| Over-discharge protection cut-off voltage | 100V |
| Over-charge protection cut-off voltage | 168V |
| TEMPERATURE SPECIFICATIONS | |
| Discharge Temperature | -4 to 140 ºF (-20 to 60 ºC) |
| Charge Temperature | 32 to 113 ºF (0 to 45 ºC) |
| Storage Temperature | 77±3 ºF (25±3ºC) |
| COMPLIANCE SPECIFICATIONS | |
| Certifications for cell | CE |
| RoHs | |
| UN38.3 | |
