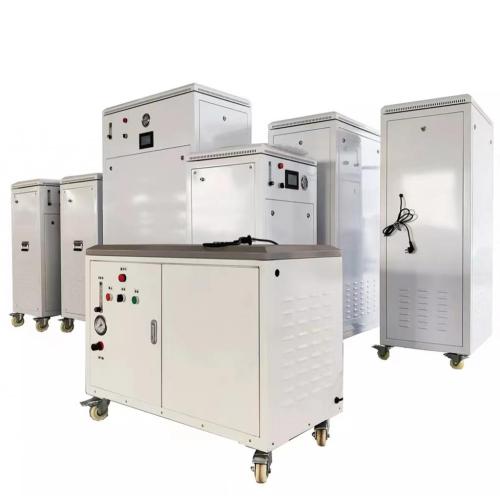

High Purity Fish Pond Oxygen Generator

The PSA oxygen generator is based on the principle of pressure swing adsorption, using high-quality zeolite molecular sieve as the adsorbent, and producing oxygen from the air under a certain pressure. The purified and dried compressed air is subjected to pressure adsorption and decompression desorption in the adsorber. Due to the aerodynamic effect, the diffusion rate of nitrogen in the micropores of zeolite molecular sieve is much faster than that of oxygen, nitrogen is preferentially adsorbed by zeolite molecular sieve, and oxygen is enriched in the gas phase to form finished oxygen.

Device Parameters

Oxygen Flow From 3L/Min to 50L/ min

The Purity 90%

Outlet Pressure: 6-10 psi (0.04-0.07 Mpa)
Input Frequency: 50/60 Hz
Sound Level: ≤ 80db
Input Voltage: AC 230V/110V ± 10%

Oxygen Device Aquaculture: Oxygen-enriched aeration can increase dissolved oxygen in water, greatly increase fish production, and can transport live fish to provide oxygen for intensive fish farming.

The aerator not only supplies the oxygen needed by the fish, but more importantly, it promotes the oxidation and decomposition of organic matter in the fish pond, promotes the convection of the pool water up and down to increase the dissolved oxygen at the bottom, and reduces the harmful substances such as hydrogen sulfide and ammonia at the bottom. Improve the habitat of fish, improve physical fitness, enhance vitality, promote production and increase output.We provide PSA Oxygen Plant customized services and provide customers with one-stop service, welcome to contact us.
