Oxygen Production Machine Psa Medical Oxygen Generator

Principle

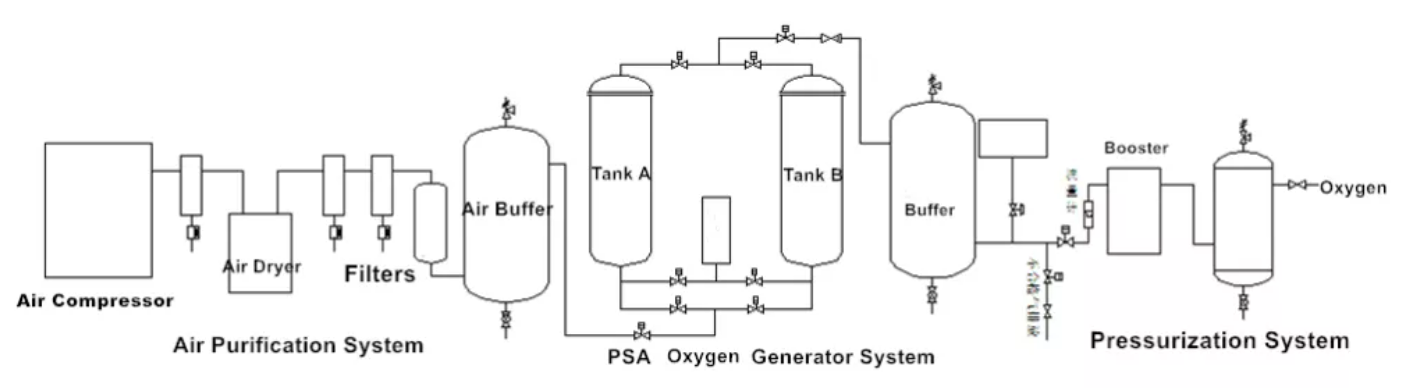

PSA Oxygen Generator System use pressure swing adsorption (PSA) to extract oxygen from gases in the ambient air. During the compression process in PSA, clean ambient air is introduced into a molecular sieve bed, which allows oxygen to be output as a product and adsorbs other gases. When the outlet valve is closed and the adsorption bed releases the pressure to the atmospheric pressure at the same time, the molecular sieve releases other gas molecules adsorbed to the atmosphere. Before the new compressed air enters, the adsorption bed completes the purification and regeneration of oxygen, and then a new gas production cycle can be carried out.

Application Range
• Medical
• Microbial cultivation application
• Ozone Generator Oxygen Device Supply Application
• Glass blowing applications
• Dissolution applications
• Reduced NOx fuel burners
• Oxygen leaching application
• Welding and brazing applications
• bodybuilding app

About Consumption

In the PSA Oxygen Generation Plant, the largest energy-consuming equipment is the air compressor; but don't think that the economical operation is to reduce the power consumption of the air compressor. In fact, there are four main factors that make up the production cost, namely production energy consumption, material consumption, maintenance and management costs and equipment depreciation.
