Energy Saving Oxygen Production Machine

Energy Saving Oxygen Production Machine

The PSA Medical Oxygen Plant has the advantages of low energy consumption, low cost, strong adaptability, fast gas production and easy adjustment of purity. It has perfect process design and best use effect and the modular design is designed to save land area. Its operation is very simple and can realize fully automated operation.

PSA Oxygen Generator System Works in A Cycle According to the Following Step

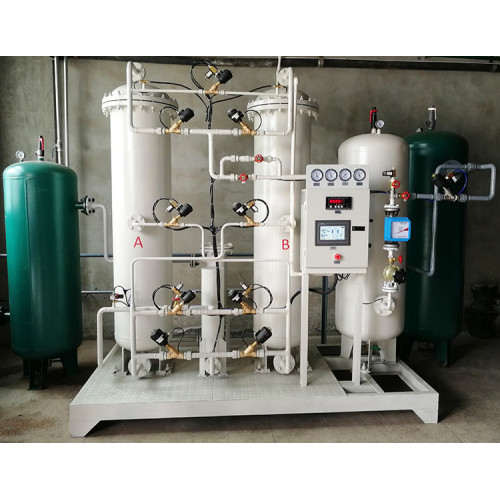

After being filtered, the air enters the compressor, passes through the condenser, and then enters the molecular sieve tanks 1 and 2 in turn under the selection of the solenoid valve.
The solenoid valve allows the high-pressure air to only enter the molecular sieve tank 1, not into the molecular sieve tank 2; nitrogen molecules are absorbed by the molecular sieve tank 1, while oxygen molecules pass directly into the oxygen storage tank; at the same time, the exhaust valve of the molecular sieve tank 2 is opened. The adsorbed nitrogen molecules are desorbed and vented to the atmosphere.

The solenoid valve allows high-pressure air to only enter molecular sieve tank 2, not molecular sieve tank 1; nitrogen molecules are absorbed by molecular sieve tank 2, while oxygen molecules pass directly into the oxygen storage tank; at the same time, the exhaust valve of molecular sieve tank 1 is opened. The adsorbed nitrogen molecules are desorbed and vented to the atmosphere.
The （Oxygen Generation Plant）high-purity oxygen in the oxygen storage tank is output through the flow meter.
