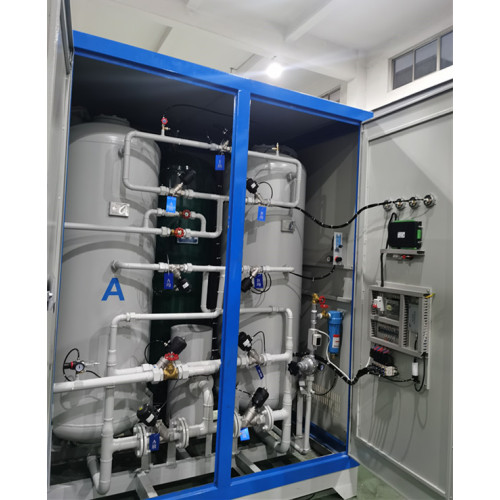

Nitrogen Psa Production Plant Nitrogen Generating System

Nitrogen Psa Production Plant Nitrogen Generating System

Carbon molecular sieves and zeolite molecular sieves are more commonly used in the field of nitrogen production. The separation effect of molecular sieve on oxygen and nitrogen is mainly based on the difference in the diffusion rate of these two gases on the surface of molecular sieve. Carbon molecular sieve is a carbon-based adsorbent that combines some characteristics of activated carbon and molecular sieve. Carbon molecular sieve has a very small microporous composition. Gas with a smaller diameter diffuses faster and enters the solid phase of the molecular sieve more, so that nitrogen-rich components can be obtained in the gas phase. Molecular sieve nitrogen production uses air as raw material, carbon molecular sieve as adsorbent, and uses the principle of pressure swing adsorption to separate nitrogen and oxygen by the selective adsorption of carbon molecular sieve to oxygen and nitrogen. It is commonly known as PSA nitrogen production device.
At present, nitrogen generation devices are widely used in safety protection gas, replacement gas, nitrogen injection, tertiary oil recovery, coal mine fire and fire extinguishing, nitrogen-based atmosphere heat treatment, anti-corrosion and explosion-proof, electronics industry, integrated circuits, etc.

The main products of ROC: SMT Cleaning Machine, PSA oxygen / nitrogen generator, wafer cleaning equipment, PCBA Cleaning Machine, PCB Separator, SMT Spare Parts, Reflow / Wave Soldering Machine, SMT Nozzle, SMT Feeder etc. If there is any need, please contact us.

Technical indicators

Nitrogen capacity: 1- 2000Nm3/h
Nitrogen purity: 95%-99.999%
Nitrogen pressure: 0.5-0.8Mpa( boost for high pressure
Nitrogen dew point: s-40.C(Atmosphere pressure)
Customized pressure, purity and capacity ranges.

Technical characteristics
1.The material source is from the nature, the system only needs compressed air and power, so the cost of power and operation is less
2. Nitrogen purity is easy to adjust, it is only affected by the capacity, purity of normal nitrogen is at the range of 95%-99.99%(can be adjusted), purity of high nitrogen is at the range of 99%-99.999%(can be adjusted)
3. The system is automatic, quick starting and no need to monitor. One button for start and stop, run 10-15 minutes to generate the N2 air
4. The working progress is easy, the configuration is compact, the landing space is less and the environment is well-adapted
5. Snow storm filling can avoid the damage of CMs
6. Digital flow meter has pressure compensation, it is highly precise meter which can monitor the progress, it can test quick flow and accumulate the total capacity

Send Inquiry Please bring the following description, we have more models to recommend to you ~! Thank you~!
