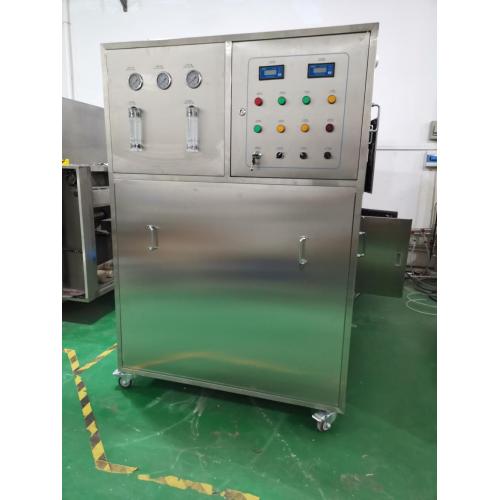

DI Water Treatment Equipment

Efficient Deionized water treatment equipment in SMT Line

DI Water Treatment / DI Water System / Equipment DI Water Machine: Filter, quartz sand, water activated carbon, RO membrane, polishing resin and other filtration systems are used to complete, the outlet resistivity can reach more than 10 megohms to ensure water quality.

Application:

According to the user's technological requirements, water quantity and other technical indicators, based on semiconductors, optics and other customers with high requirements for water quality cleaning, based on municipal tap water quality, this RO reverse osmosis + MB mixed bed ultrapure water is designed and provided Preparation system.

ROC manufactures and supplies other SMT cleaning Machine, like PCBA Cleaning Machine, PCB Cleaning Machine, SMT Nozzle Cleaning Machine, SMT stencil cleaning machine, Jigs cleaning machine, Camera modules cleaning machine, Wafer Cleaner Machine, etc.

Professional Water purifier produce RO and DI water,widely used in hospital,research lab,industry,university.
Automatically power on and power off according the water inflow or water outflow.

1.PLC control system, touch screen operation, simple and easy to understand.
2. Double imported dust roller, automatic lifting design.
3. The unique design of the brush device can effectively clean the larger dust and protect the wear of the dust roller.
4. 1 electrostatic eliminator in each inlet and outlet can efficiently remove static electricity from PCB.
5. Transmission by stepper motor drive, precise and stable.
6. The central support function should play a key role in the possible deformation of the big pcb.
7. Modular design of the whole machine, convenient and quick maintenance.

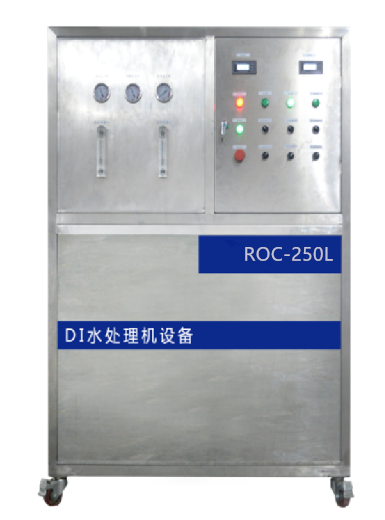

Product Description

High pressure pump	4HP stainless steel multistage centrifugal pump
DI water production	250L/H
Conductivity	below 5 US
Resistivity	10 megaohms --- 16 megohms
External power supply	AC380V /50HZ /2.2KW
Exhaust port size	Φ123×30mm(H) Maximum gravitational wind speed 3m/see
Filtration system	Six-stage multi-media filtration (sand, charcoal, resin, RO membrane, etc.)
Machine net weight	~400Kg
Machine Type	Purified water equipment
Applicable PCB board size (L*W)	1200mm (L) × 1100mm (W) × 1600mm (H)
