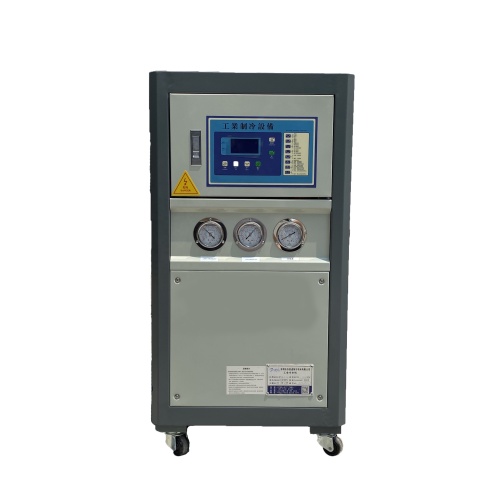

Refrigerant circulation Physical heat-exchange chillers

These industrial water chiller lines can precisely control the temperature, which is requested during industrial production, and they can greatly improve the production efficiency and quality, also can reduce production time.

Refrigerant circulation Physical heat-exchange chillers,Imported branded compressor from USA and Japan, built in safety protection, low noise, power-saving and durability.

380V 50Hz,

Refrigerating capacity:12.43Kw,10700Kcal/h

Power rating:3.55Kw

Refrigerant:2.2kg

Compressor power:3Kw

Cooling water:2.67m3/h,1"pipe

Chilled water:2.14m3/h,1"pipe

Pump:0.37Kw,242Kpa

1. High quality compressor

Compressor as the core part of the chiller, which determines the service life of the chiller, our factory chooses new original compressor imported from abroad, built-in safety power broking, low noise, power saving and durable, reliable quality.

2. High quality evaporator

Stainless steel thick water tank evaporator, built-in automatic water replenishment device, eliminating the need for engineering installation of the bloated water tank, convenient installation and maintenance, and is suitable for large temperature difference small flow and other special occasions.

3. Condenser

It adopts imported copper tube and automatic elbow welding, which greatly enhances the oxygen tightness and prevents the phenomenon of refrigerant sinks and leaks, and it adopts high-speed punching machine to punch holes, the flap quality is reliable, the second flap, the copper tube and the fins contact more closely, and the heat exchange efficiency is high. It is especially suitable for use in areas where there is a shortage of water resources or where the water hardness is high.
