Top quality water cool industrial chiller

Water-cooled chiller,water cooled chiller system,water cooling chilling equipment,working of water cooled chiller,water cooled chiller parts,water cooled chiller plant: Variable temperature stepless control of water temperature, integrated design, water tank and water pump are integrated together to save installation space. The evaporator of the coiled Cologne precision machine is an open water tank. When the work is stopped, the pump has no pressure, and the water level of the water tank is generally higher than that of the machine. . The energy interaction between a heat pump or industrial ice water machine and the surrounding environment is to absorb heat from a low temperature heat source and release heat to a high temperature heat source. The purpose is to obtain high temperature (heating) and release heat to a high temperature part.

Six characteristics of water-cooling chiller:

1. Water-cooled chillers are safer in operation and easier to maintain and repair.

2. The high-quality compressor is the heart of the water-cooled chiller, with a built-in safety protection system, low noise, power saving and durable.

3. The water-cooled chiller is made of the latest high-efficiency externally threaded copper tube. It has a very small size, fast heat dissipation, compact structure, high reliability, beautiful appearance, high efficiency and energy saving.

4. The water-cooled chiller unit is equipped with a single-chip control system, built-in compressor dryer filter and expansion valve, maintenance hand valve interface, etc., so that the equipment runs safely and is convenient for maintenance.

5. The water tank evaporator has a built-in automatic water replenishment device, which saves the water tank in the engineering installation, is convenient for installation and maintenance, and is suitable for special occasions such as large temperature difference and small flow.

6. The multi-function operation panel of the water-cooled chiller is equipped with an ammeter, control system insurance, compressor switch button, water pump switch button, electronic temperature controller, safety protection fault light, unit start-up indicator light, simple operation and convenient use.

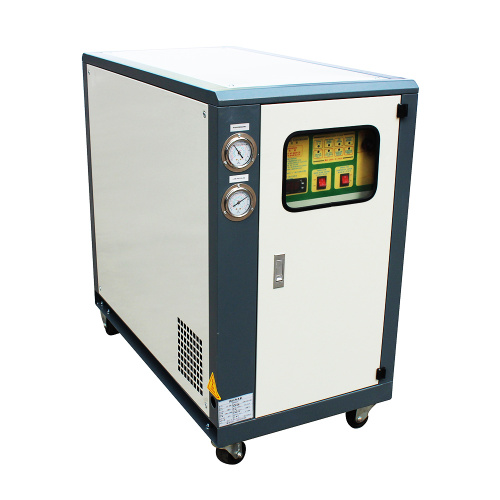

Water-Cooled industrial Chiller

Lubricating Oil Location Compressor Inside

Type Special High Purity Luburicating Oil

Parameter Exhaust pressure PA 13~20

Working temperature °C ≤45

Total power KW/h 13.5

Working current A 27

total weight Kg 50

Operating weight Kg 65

Size m 1.90*0.90*1.46

Main Future 1. Use the world famous compressor as the core power.

2. Adjustable temperature and automatic intelligent control.

3. Safety protection and instruction function to ensure safe operation.

4. Protection level: IP54

5. High strength pressure test, water system withstand pressure 1.6 ~    2.0Mpa, fluorine system 2.5 ~ 3.0Mpa

6. After the debugging of automatic constant temperature test bench, the products are delivered to ensure the best performance.

7. The equipment can run continuously for 24 hours.

Protective Device 1. Phase loss, reverse phase protection

2. Motor overload protection

3. High and low pressure protection

4. Water shortage and insufficient flow protection

5. Fully automatic temperature control system

Parts

Item Name Brand of Origin

Compressor Panasonic, Japan

Contactor / thermal protector LS, Korea

Refrigerant DuPont, USA

Filter drier ALCO, USA

Expansion valve Danfoss, Denmark

Chilled water pumps SOUTH, Hangzhou

304 stainless steel water tank TOYOCOOL, Shenzhen

Cooling fan MaEr, Hangzhou

Finned condenser TOYOCOOL, Shenzhen

Coil evaporator TOYOCOOL, Shenzhen

Hydraulic pressure gauge (high and low pressure) Toako, Kunshan

Pressure controller Heli, Feng Hhua

Controller MINAMOTO, Taiwan
