DC 5V 4-phase 5 line 35byj46 stepping motor
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description

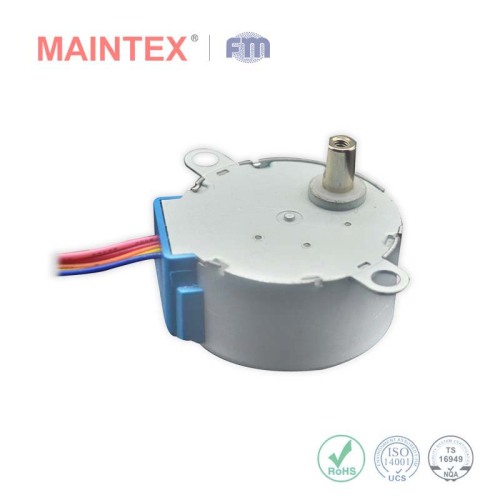

Stepper Motor DC 5V 4-phase 5 line 35byj46 stepping motor
Description
Size:35mm diameter
Step angle: 7.5 degree
Voltage: 12 V
4 phase, 5 lead wires
Parameter of 35BYJ46Stepping Motor
| Items | Spec. |
| Phase | 4 |
| Noise | ≤40db |
| Starting frequency | ≥500HZ |
| Detent torque | ≥90mN.m |
| Pull out frequency | ≥800hz |
| Voltage | 12v |
| Step angle | 7.5 degree |
| Reduction ratio | 1/85 |
| OEM |
Accept |
Drawing of 35BYJ46 Stepper Motor
Applications
Our Factory
All characteristics above are customizable, if you want Worm Gear Motor, Stepper Motor, Brushless DC Motor, Brush Motor and other motors' OEM / ODM service, please contact us for further information.
