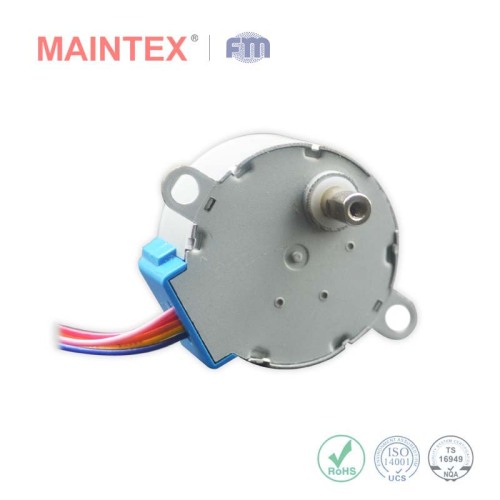

Pet feeder 28BYJ48 stepper motor with 28mm miniatures
Your message must be between 20 to 2000 characters
Contact NowPet feeder 28BYJ48 stepper motor with 28mm miniatures
Specification:
Diameter: 28 mm
Step Angle: 5.625 degree
Voltage: 4V, can be customized.
Phase: 4
Rotation: CW/CCW
Excitation: Bipolar, 1-2
Parameter of Pet feeder 28BYJ48 stepper motor with 28mm miniatures
| Items | Spec. |
| Step Angle(degrees) | 5.625 degree/64 |
| Holding Torque | 60mN.m |
| Reduction Ratio | 1:64 |
| Detent torque | ≥90mN.m |
| Pull out torque | ≥90mN.m |
| Current / Phase | 21 ohm±10% |
| Height of output shaft | 10.2±0.5mm |
| Input Torque | ≥60mN.m(DC4V,400HZ) |
| OEM | Accept |
Drawing of Pet feeder 28BYJ48 stepper motor with 28mm miniatures
Application of Pet feeder Pet feeder 28BYJ48 stepper motor with 28mm miniatures
All characteristics above are customizable, if you want Worm Gear Motor, Stepper Motor, Brushless DC Motor, Brush Motor and other motors' OEM / ODM service, please contact us for further information.
