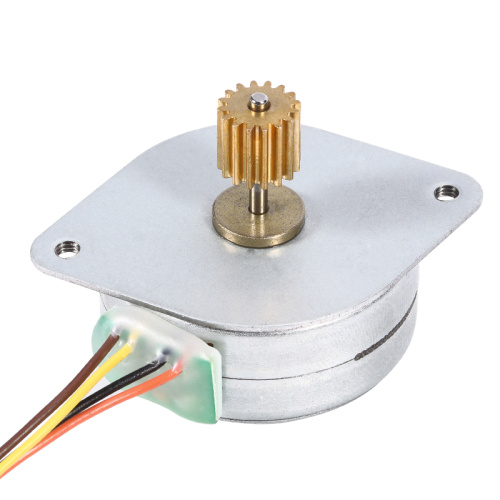

35BY212 PM Micro Linear Stepper Motor
35BY212 PM Micro Linear Stepper Motor Parameters
| Model | Items | SPEC |
| 35BY212 | Driving Voltage | 24±10%VDC |
| Phase | 2 | |
| Exciting Method | 2-2 | |
| Exciting Mode | Bipolar | |
| Steo Angle | 7.5° | |
| Rotor Inertia | 0.06gcm² | |
| Rotation | CW/CCW | |
| Resistance | 8±10%Ω(25°C) | |
| Inductance | 8.2±20%mH | |
| Max.pull-in Frequency | 6000Hz | |
| Max.pull-out Frequency | 800Hz | |
| Holding Torque | 300gf.cm(24VDC) | |
| Detent Torque | 150gf.cm | |
| Insulation Resistance | 100MΩ 500VDC | |
| Noise | ≤40dB |
