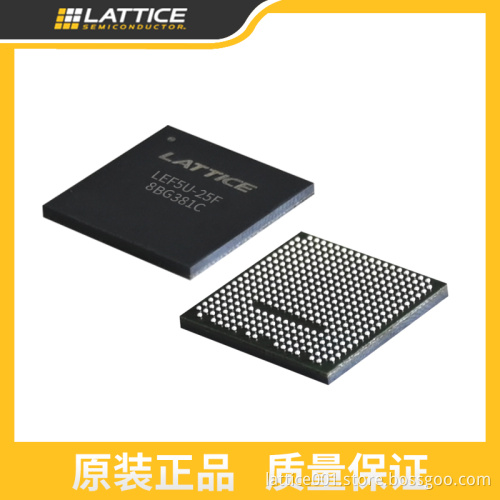

LATTICE FPGA IC LFE5U-25F-8BG381C

ECP5 and ecp5-5g devices cost less than rival FPGA products, use better wiring architectures, dual-channel SERDES, and enhanced DSP modules, reduce multiplier resource usage by up to four times, and aim to provide interconnection for ASIC and ASSP.Small size package, double functional density -- 10x10 mm, 0.5mm pin spacing package, up to 85K LUT, with SERDES. Appropriate reduction of package pins facilitates the use of current low-cost PCB wiring technology.Power consumption is reduced by 30% -- static and dynamic power consumption is less than 0.25w with single-channel SERDES and less than 0.5w with four-channel SERDES.

features

 ECP5 supports up to 3.2 Gbps SERDES rate, and ecp5-5g supports up to 5 Gbps SERDES rateThe device has dual channel modules that provide up to 4 channels for higher granularityThe enhanced DSP block provides twice the resource savings for the symmetric filterSingle event upset (SEU) response supportProgrammable IO supports LVCMOS 33/25/18/15/12, XGMII, LVTTL, LVDS, bus-lvds, 7:1 LVDS, LVPECL, and MIPI d-phy input/output interfaces
