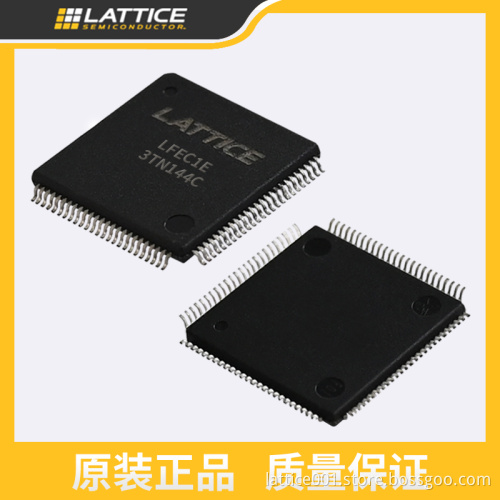

lattice fpga LFEC1E-3TN144C

Redefining the field of FPGA applications -- with up to 95K LUT, 5.3mbit sysMEM memory blocks and distributed RAM, the integration of the ECP2 and ECP2M product lines was previously only available with high-cost fpgas.High speed SERDES with PCS - low speed transmission SERDES with high jag tolerance and PCS blocks can be configured to support a wide range of commonly used data protocols, including PCI Express, Ethernet (1GbE and SGMII), OBSAI, and CPRI.Low power consumption, high performance -- static power consumption is only 0.35w, and the LatticeECP2/M line also supports LVDS IO at 840Mbps, ddr1/2 at 533Mbps, and SPI4.2 at 750Mbps.

features

Embedded SERDES supports up to 3.125 Gbps data rates (LatticeECP2M only)Up to 42 sysDSP blocks provide high performance multiplication and summationSysMEM embedded RAM blocks from 55kbit to 5308kbit (EBR)SysCLOCK provides analog PLL and DLL for clock doubling, splitting, phase shift and delay adjustmentOptional TQFP, PQFP, and fpBGA packages
