Basic Info

Product Description

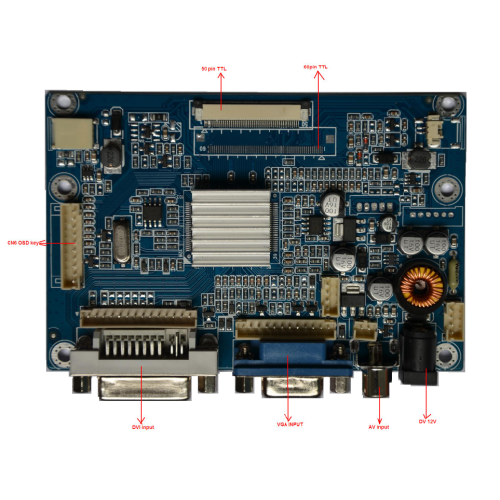

TYAT070TN94-DVI is a high-performance and high stability of industrial LCD driver board.With wider operating temperature, longer of life, offers VGA, DVI input, using Taiwan Realtek (Realtek) processing drive chip RTD2660H,it can driver 50PIN CMOS TTL LCD,such as AT070TN94,ZJ050NA-08C,AT056TN52 V.3,AT065TN14,AT070TN92,AT070TN94,EJ080NA-05B,AT080TN64.The maximum resolution it support is 1920X1080.

Main parameter

IC solution	RTD2660H
Signal input	VGA/DVI/AV
Supported LCD	interface	COMS-TTL
Supported LCD	resolution	Min 640X480,Max 1920X1080
Power supply	Input voltage	DC 12V
	Voltage out to LCD	3.3V
	Mode	Low power and standby mode
	Standby Power	<1W
OSD language	Simplified Chinese, Traditional Chinese, English, French, German, Italian, Spanish, Japanese, Korean
OSD Manu	AUTO,MENU,LEFT-,RIGHT+, EXIT/SELECT, ,ON/OFF

DC 12V input

Support one VGA,one DVI,signal input
Support 50PIN CMOS TTL LCD
Automatic dual-channel signal detection.
Stable .
Using anti-high temperature electronic components.
With overcurrent and overvoltage protection.
With ESD protection.
ROHS
Supported resolution 640X480(VGA),800X480(WVGA),800*600(SVGA), 1024*768(XGA), 1280*1024(SXGA), 1360*768(WXGA), 1440*900 (WXGA+),1680*1050(WSXGA+),1920*1080(WSUVGA+)
