TM043NDHG29 4.3 Inch Tianma TFT-LCD
-
$25.001-99 Piece/Pieces
-
$20.00≥100 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs |
| Supply Ability: | 10000 pcs |
| Payment Type: | Paypal,T/T |
| Incoterm: | FOB,EXW |
| Certificate: | ce,rohs |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
This Tianma TFT-LCD is a 4.3 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. TM043NDHG29 supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×3.8(D) mm, viewing area size of 99.6(W)×56.7(H) mm, with surface treament of Antiglare, net weight of 42.0g (Typ.). As a TN, Normally White, Transmissive LCM product, TM043NDHG29 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 5S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TM043NDHG29 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/7.5V (Typ.)(VDD/VPP). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model P/N |
TM043NDHG29 |
|
Brand |
TIANMA |
|
Diagonal Size |
4.3" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
480(RGB)×272, WQVGA 128PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Active Area |
95.04(W)×53.856(H) mm |
|
Bezel Opening |
99.6(W)×56.7(H) mm |
|
Outline(mm) |
105.5 × 67.2 × 3.8 (H×V×D) |
|
Treatment |
Antiglare |
|
Luminance |
400 cd/m² (Typ.) |
|
Contrast Ratio |
800 : 1 (Typ.) (TM) |
|
Viewing Angle |
70/70/60/70 (Typ.)(CR≥10) |
|
Response |
25 (Typ.)(Tr+Td) ms |
|
Good View at |
6 o'clock |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
16.7M 50% NTSC |
|
Backlight |
5S2P WLED , 30K hours , No Driver |
|
Mass |
42.0g (Typ.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
|
Voltage Supply |
3.3/7.5V (Typ.)(VDD/VPP) |
|
Max. Ratings |
Storage Temp.: -30 ~ 90 °C Operating Temp.: -30 ~ 85 °C |

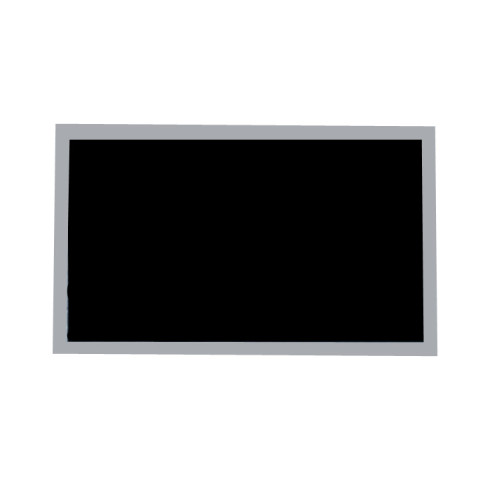

Product Picture:
