TM043NVHG08 4.3 inch Tianma TFT-LCD
-
$25.001-99 Piece/Pieces
-
$20.00≥100 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | carton |
|---|---|
| Productivity: | 10000 pcs |
| Supply Ability: | 10000 pcs |
| Payment Type: | Paypal,T/T |
| Incoterm: | FOB,EXW |
| Certificate: | CE, ROHS |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
TM043NVHG08 is a 4.3 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, touchscreen PCAP. This Tianma TFT-LCD is a 4.3 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. TM043NVHG08 supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 113.44(W)×71.46(H)×5(D) mm, viewing area size of 96.04(W)×54.86(H) mm, net weight of TBD. As a TN, Normally White, Transmissive Assembly product, TM043NVHG08 can provides 350 cd/m² display brightness 900:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 5S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM043NVHG08 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/7.5V (Typ.)(VDD/VPP). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model P/N |
TM043NVHG08 |
|
Brand |
TIANMA |
|
Diagonal Size |
4.3" |
|
Panel Type |
a-Si TFT-LCD, Assembly |
|
Resolution |
480(RGB)×272, WQVGA 128PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Active Area |
95.04(W)×53.856(H) mm |
|
Bezel Opening |
96.04(W)×54.86(H) mm |
|
Outline (mm) |
113.44×71.46×5 (H×V×D) |
|
Luminance |
350 cd/m² (Typ.) |
|
Contrast Ratio |
900 : 1 (Typ.) (TM) |
|
Viewing Angle |
80/80/80/60 (Typ.)(CR≥10) |
|
Response |
20 (Typ.)(Tr/Td) ms |
|
Good View at |
6 o'clock |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
16.7M 50% NTSC |
|
Backlight |
5S2P WLED , 20K hours , No Driver |
|
Mass |
TBD |
|
Refresh Rate |
60Hz |
|
Touchscreen |
PCAP, I²C |
|
Signal Type |
Parallel RGB (1 ch, 8-bit) , FPC 40 pins |
|
Voltage Supply |
3.3/7.5V (Typ.)(VDD/VPP) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

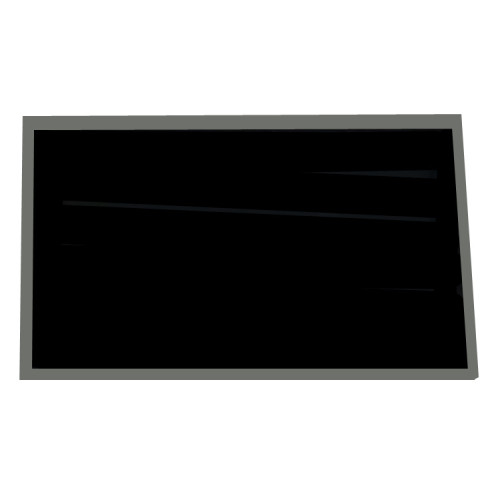

Product Picture:
