TM043NBHG04 4.3 Inch Tianma TFT-LCD
-
$25.001-99 Piece/Pieces
-
$20.00≥100 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs |
| Supply Ability: | 10000 pcs |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW,FOB |
| Certificate: | CE, ROHS |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
This Tianma TFT-LCD is a 4.3 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen.TM043NBHG04 supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×4.4(D) mm, with surface treament of Hard coating (3H), net weight of 59.4g (Typ.). As a TN, Normally White, Transmissive LCM product, TM043NBHG04 can provides 800 cd/m² display brightness 800:1 transimissive contrast ratio, 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 8S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM043NBHG04 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model P/N |
TM043NBHG04 |
|
Brand |
TIANMA |
|
Diagonal Size |
4.3" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
480(RGB)×272, WQVGA 128PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Active Area |
95.04(W)×53.856(H) mm |
|
Outline Size |
105.5(W)×67.2(H) ×4.4(D) mm |
|
Surface |
Hard coating (3H) |
|
Brightness |
800 cd/m² (Typ.) |
|
Contrast Ratio |
800:1 (Typ.) (TM) |
|
Viewing Angle |
70/70/70/60 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Best View on |
6 o'clock |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Display Colors |
16.7M 50% NTSC |
|
Lamp Type |
8S2P WLED , 20K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
4-wire Resistive Touch |
|
Panel Weight |
59.4g (Typ.) |
|
Signal Interface |
Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

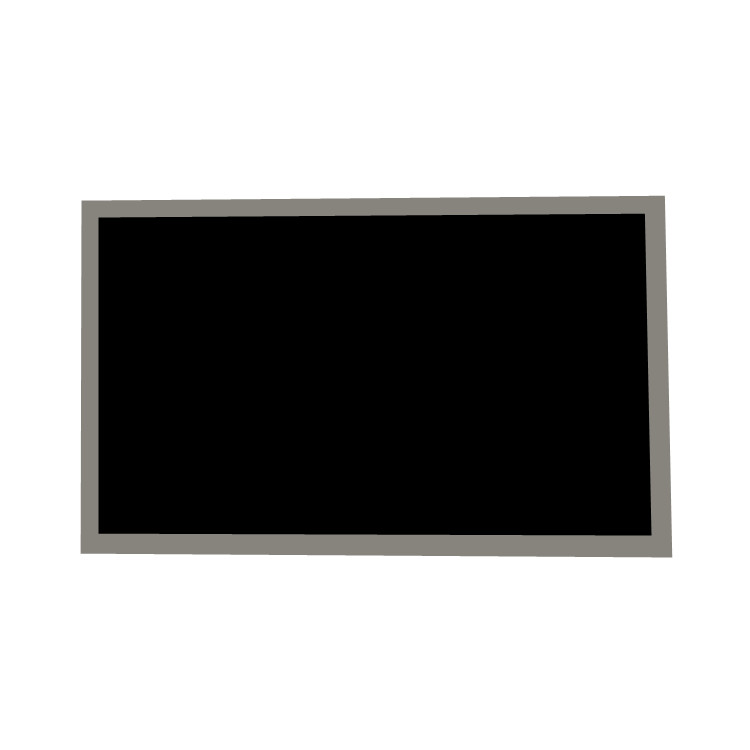

Product Picture:
