TM040YDGP03 4.0 inch Tianma TFT-LCD
-
$25.001-99 Piece/Pieces
-
$20.00≥100 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs |
| Supply Ability: | 10000 pcs |
| Payment Type: | Paypal,T/T |
| Incoterm: | FOB,EXW |
| Certificate: | CE, ROHS |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
This Tianma TFT-LCD is a 4.0 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen.TM040YDGP03 supports display 480(RGB)×800 (WVGA) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 51.84(W)×86.4(H) mm, outline size of 57.14(W)×96.85(H)×1.95(D) mm, viewing area size of 52.64(W)×87.2(H) mm, with surface treament of Antiglare, net weight of TBD. As a IPS, Normally Black, Transmissive LCM product, TM040YDGP03 can provides 600 cd/m² display brightness 1200:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 67% (NTSC). This product adopted 8S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TM040YDGP03 utilizes MIPI (2 data lanes) as it's signal inputting systerm, which connected by 25 pins FPC with power supply voltage of 1.8/2.8V (Typ.)(IOVCC/VDD). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model P/N |
TM040YDGP03 |
|
Brand |
TIANMA |
|
Diagonal Size |
4.0" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
480(RGB)×800, WVGA 235PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Active Area |
51.84(W)×86.4(H) mm |
|
Bezel Opening |
52.64(W)×87.2(H) mm |
|
Outline Size |
57.14(W)×96.85(H) ×1.95(D) mm |
|
Surface |
Antiglare |
|
Brightness |
600 cd/m² (Typ.) |
|
Contrast Ratio |
1200:1 (Typ.) (TM) |
|
Viewing Angle |
88/88/88/88 (Typ.)(CR≥10) |
|
Display Mode |
IPS, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Display Colors |
16.7M 67% NTSC |
|
Lamp Type |
8S1P WLED , 30K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
TBD |
|
Signal Interface |
MIPI (2 data lanes) , 25 pins FPC |
|
Input Voltage |
1.8/2.8V (Typ.)(IOVCC/VDD) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

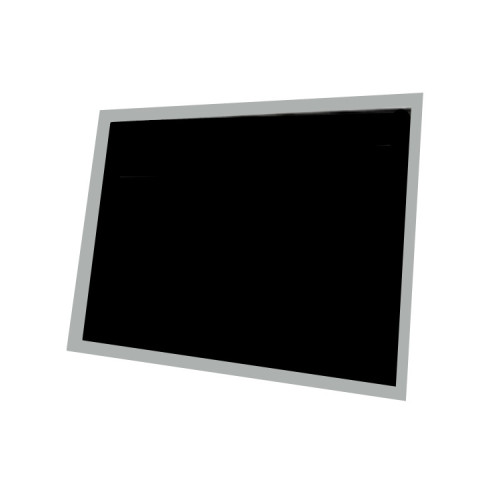

Product Picture:
