TM037XDGJ02 3.7 Inch Tianma TFT-LCD
-
$25.001-99 Piece/Pieces
-
$20.00≥100 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs |
| Supply Ability: | 10000 pcs |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW,FOB |
| Certificate: | CE, ROHS |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
TM037XDGJ02 is a 3.7 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, without touch screen. This Tianma TFT-LCD is a 3.7 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. TM037XDGJ02 supports display 720(RGB)×92 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 93.96(W)×12.006(H) mm, outline size of 100(W)×19.7(H)×2.7(D) mm, viewing area size of 94.96(W)×13.006(H) mm, with surface treament of Hard coating, net weight of 9.76g. As a SFT, Normally Black, Transmissive LCM product, TM037XDGJ02 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 3S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TM037XDGJ02 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 6.0/-6.0/2.8V (Typ.)(VSP/VSN/IOVCC). It's typical vertical frame rate (Fv) is 60Hz
We are able to offer AD board for this display to support VGA video input.
|
Model P/N |
TM037XDGJ02 |
|
Brand |
TIANMA |
|
Diagonal Size |
3.7" (Native bar) |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
720(RGB)×92 194PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Active Area |
93.96(W)×12.006(H) mm |
|
Bezel Opening |
94.96(W)×13.006(H) mm |
|
Outline Dim. |
100(H)×19.7(V) ×2.7(D) mm |
|
Treatment |
Hard coating |
|
Luminance |
400 cd/m² (Typ.) |
|
Contrast Ratio |
800:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
|
Operating Mode |
SFT, Normally Black, Transmissive |
|
Support Color |
16.7M 70% NTSC |
|
Light Source |
WLED [3S3P] , 30K hours , W/O Driver |
|
Weight |
9.76g |
|
Frame Rate |
60Hz |
|
Touch Panel |
Without |
|
Interface Type |
MIPI (4 data lanes) , 30 pins FPC |
|
Power Supply |
6.0/-6.0/2.8V (Typ.)(VSP/VSN/IOVCC) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

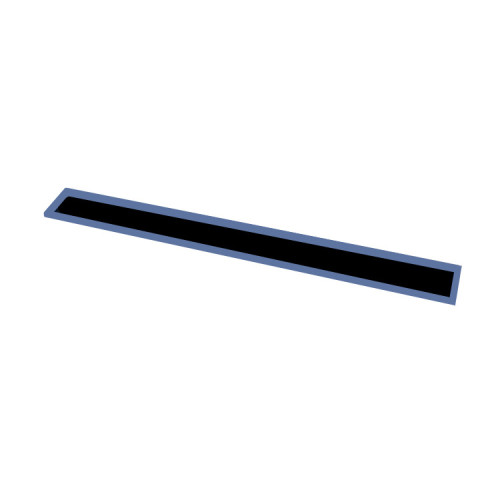

Product Picture:
