TM035PDHG09 3.5 Inch Tianma TFT-LCD
-
$25.001-99 Piece/Pieces
-
$20.00≥100 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs |
| Supply Ability: | 10000 pcs |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW,FOB |
| Certificate: | CE, ROHS |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
This Tianma TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen.TM035PDHG09 supports display 320(RGB)×480 (HVGA) with aspect ratio of 2:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 48.96(W)×73.44(H) mm, outline size of 54.76(W)×84.19(H)×2.1(D) mm, with surface treament of Hard coating, net weight of 13.3g (Typ.). As a TN, Normally White, Transmissive LCM product, TM035PDHG09 can provides 300 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 25 (Typ.)(Tr+Td) ms., thus presenting a palette of 65K/262K colors, also with performance of color gamut 60% (NTSC). This product adopted 1S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TM035PDHG09 utilizes CPU/RGB/SPI as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 1.8/2.8V (Typ.)(IOVCC/VCI). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model P/N |
TM035PDHG09 |
|
Brand |
TIANMA |
|
Diagonal Size |
3.5" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
320(RGB)×480, HVGA 166PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Active Area |
48.96(W)×73.44(H) mm |
|
Outline Dim. |
54.76(W)×84.19(H)×2.1(D) mm |
|
Treatment |
Hard coating |
|
Luminance |
300 cd/m² (Typ.) |
|
Contrast Ratio |
500:1 (Typ.) (TM) |
|
View Direction |
6 o'clock |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Viewing Angle |
70/70/70/60 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
65K/262K 60% NTSC |
|
Light Source |
WLED [1S6P] , 30K hours , W/O Driver |
|
Weight |
13.3g (Typ.) |
|
Frame Rate |
60Hz |
|
Touch Panel |
Without |
|
Interface Type |
CPU/RGB/SPI , 50 pins FPC |
|
Power Supply |
1.8/2.8V (Typ.)(IOVCC/VCI) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

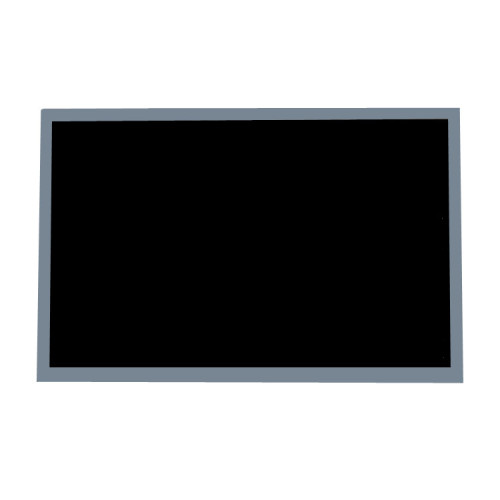

Product Picture:
