TM035KBH02-09 3.5 Inch Tianma TFT-LCD
-
$25.001-99 Piece/Pieces
-
$20.00≥100 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs |
| Supply Ability: | 10000 pcs |
| Payment Type: | T/T,Paypal |
| Incoterm: | EXW,FOB |
| Certificate: | CE, ROHS |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
This Tianma TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. TM035KBH02-09 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08(W)×52.56(H) mm, outline size of 76.9(W)×63.9(H)×4.2(D) mm, viewing area size of 72.08(W)×54.56(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 40.0g (Typ.). As a TN, Normally White, Transmissive LCM product, TM035KBH02-09 can provides 420 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM035KBH02-09 utilizes Digital RGB (8/24-bit) + SPI, CCIR601/656 as it's signal inputting systerm, which connected by 54 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model P/N |
TM035KBH02-09 |
|
Brand |
TIANMA |
|
Diagonal Size |
3.5" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
320(RGB)×240, QVGA 115PPI |
|
Pixel Format |
RGB Vertical Stripe |
|
Active Area |
70.08(W)×52.56(H) mm |
|
Bezel Opening |
72.08(W)×54.56(H) mm |
|
Outline(mm) |
76.9 × 63.9 × 4.2 (H×V×D) |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Luminance |
420 cd/m² (Typ.) |
|
Contrast Ratio |
500 : 1 (Typ.) (TM) |
|
Viewing Angle |
70/70/60/70 (Typ.)(CR≥10) |
|
Response |
25 (Typ.)(Tr+Td) ms |
|
Good View at |
12 o'clock |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
16.7M 50% NTSC |
|
Backlight |
6S1P WLED , 20K hours , No Driver |
|
Mass |
40.0g (Typ.) |
|
Refresh Rate |
60Hz |
|
Touchscreen |
4-wire Resistive Touch |
|
Signal Type |
Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins FPC |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |

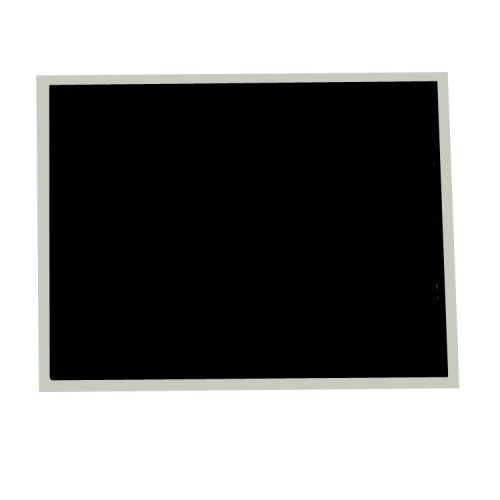

Product Picture:
