TM150TDSG73 TIANMA 15.0 inch TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

TM150TDSG73 is a 15.0 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, With LED Driver, without touch screen. Tianma TFT-LCD is a 15.0 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Final Ver2.0 which was released out on 6 27 2017, TM150TDSG73 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 304.128(W)×228.096(H) mm, outline size of 326.5(W)×253.5(H)×12.1(D) mm, viewing area size of 307.4(W)×231.3(H) mm, with surface treament of Antiglare, net weight of 1.00Kgs (Typ.). As a TN, Normally White, Transmissive LCM product, TM150TDSG73 can provides 450 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 8 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 62% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. TM150TDSG73 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	TM150TDSG73
Panel Brand	TIANMA
Panel Size	15.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1024(RGB)×768 , XGA
Pixel Format	RGB Vertical Stripe
Display Area	304.128(W)×228.096(H) mm
Bezel Opening	307.4(W)×231.3(H) mm
Outline Size	326.5(W)×253.5(H) ×12.1(D) mm
Surface	Antiglare
Brightness	450 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	12 o'clock
Response Time	8 (Typ.)(Tr+Td)
Display Colors	262K/16.2M 62% NTSC
Lamp Type	WLED , 30K hours , With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	1.00Kgs (Typ.)
Signal Interface	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

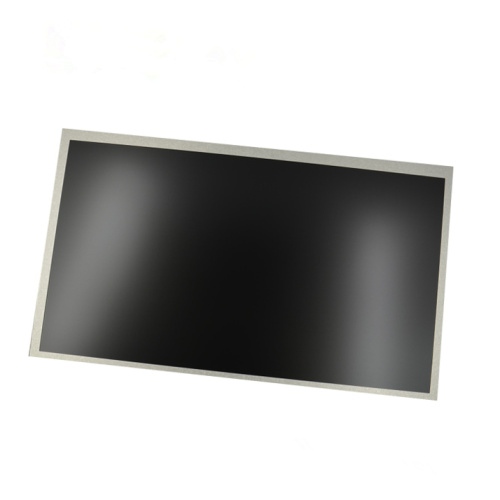

Product Picture:

TM150TDSG73
