TM123XDHP90 TIANMA 12.3 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM123XDHP90 is a 12.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. Tianma TFT-LCD is a 12.3 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. Based on datasheet with version of Rev.V1.0 which was released out on 1 11 2017, TM123XDHP90 supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 292.32(W)×109.62(H) mm, outline size of 311(W)×130(H)×15.7(D) mm, with surface treament of Antiglare (Haze 28%), net weight of 490g (Typ.). As a SFT, Normally Black, Transmissive LCM product, TM123XDHP90 can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 98% (sRGB). This product adopted 10S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. TM123XDHP90 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
TM123XDHP90 |
|
Manufacturer |
TIANMA |
|
Screen Size |
12.3 inch |
|
Pixel Number |
1920(RGB)×720 |
|
Active Area(mm) |
292.32 × 109.62 (H×V) |
|
Luminance |
1000 (Typ.)(cd/m²) |
|
Good View at |
Symmetry |
|
Color Depth |
16.7M 98% sRGB |
|
Mass |
490g (Typ.) |
|
Refresh Rate |
60Hz |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Arrangement |
RGB Vertical Stripe |
|
Outline(mm) |
311 × 130 × 15.7 (H×V×D) |
|
Treatment |
Antiglare (Haze 28%) |
|
Contrast Ratio |
1000 : 1 (Typ.) (TM) |
|
Work Mode |
SFT, Normally Black, Transmissive |
|
Response |
25 (Typ.)(Tr+Td) ms |
|
Backlight |
10S4P WLED , 10K hours , No Driver |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (2 ch, 8-bit) , 50 pins FPC |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -40 ~ 95 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 3.0G (29.4 m/s²) |

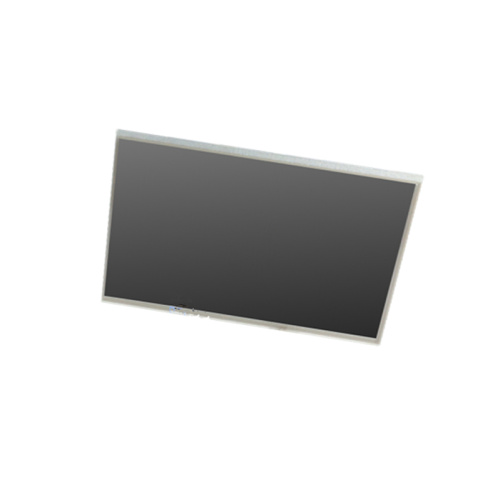

Product Picture:
