TM121SDSG07 TIANMA 12.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM121SDSG07 is a 12.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. Tianma TFT-LCD is a 12.1 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM121SDSG07 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm. As a TN, Normally White, Transmissive LCM product, TM121SDSG07 can provides 350 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/65/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 55% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. TM121SDSG07 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
TM121SDSG07 |
|
Manufacturer |
TIANMA |
|
Screen Size |
12.1 inch |
|
Screen Type |
LCM , a-Si TFT-LCD |
|
Pixel Number |
800(RGB)×600 (SVGA) |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
246 × 184.5 (H×V) |
|
Luminance |
350 cd/m² (Typ.) |
|
Contrast Ratio |
700 : 1 (Typ.) (TM) |
|
Viewing Angle |
80/80/65/75 (Typ.)(CR≥10) |
|
Response |
35 (Typ.)(Tr+Td) ms |
|
35 (Typ.)(Tr+Td) ms |
Good View at |
|
Work Mode |
TN, Normally White, Transmissive |
|
Color Depth |
262K/16.7M 55% NTSC |
|
Backlight |
WLED , 30K hours , With LED Driver |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (1 ch, 6/8-bit) , 20 pins Connector |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

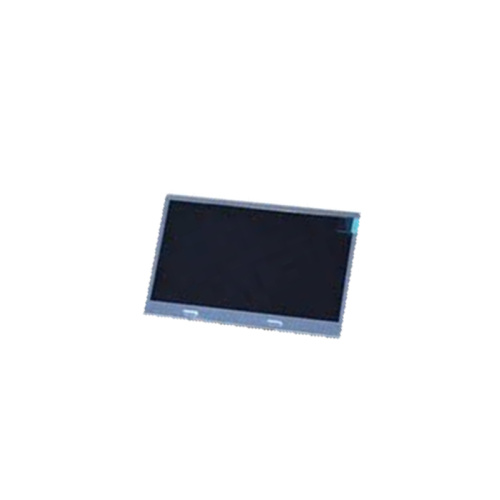

Product Picture:
