TM121JDSG10 TIANMA 12.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM121JDSG10 is a 12.1inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. Tianma TFT-LCD is a 12.1 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Final Ver2.0 which was released out on 5 8 2017, TM121JDSG10 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 261.12(W)×163.2(H) mm, outline size of 278(W)×184(H)×10.4(D) mm, viewing area size of 262.12(W)×164.2(H) mm, with surface treament of Antiglare, net weight of 440g (Typ.). As a SFT, Normally Black, Transmissive LCM product, TM121JDSG10 can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12/13 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 40% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. TM121JDSG10 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
TM121JDSG10 |
|
Panel Brand |
TIANMA |
|
Panel Size |
12.1" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1280(RGB)×800 , WXGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
261.12(W)×163.2(H) mm |
|
Bezel Opening |
262.12(W)×164.2(H) mm |
|
Outline Size |
278(W)×184(H) ×10.4(D) mm |
|
Surface |
Antiglare |
|
Brightness |
450 cd/m² (Typ.) |
|
Contrast Ratio |
1000:1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Display Mode |
SFT, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
12/13 (Typ.)(Tr/Td) |
|
Display Colors |
16.7M 40% NTSC |
|
Lamp Type |
WLED , 50K hours , With LED Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
440g (Typ.) |
|
Signal Interface |
LVDS (1 ch, 8-bit) , 30 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

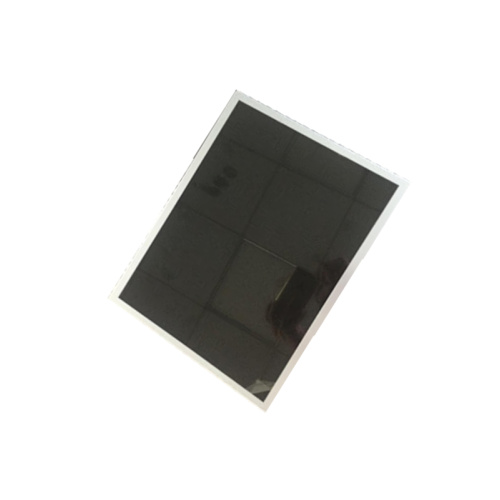

Product Picture:
