TM116VDSP01 is a 11.6 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. Tianma TFT-LCD is a 11.6 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM116VDSP01 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 256.32(W)×144.18(H) mm, outline size of 273.5(W)×166.5(H) mm, viewing area size of 259.31(W)×148.73(H) mm, with surface treament of Hard coating, net weight of 527g (Typ.). As a SFT, Normally Black, Transmissive LCM product, TM116VDSP01 can provides 1600 cd/m² display brightness 900:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 6S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TM116VDSP01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3/10.7/20/-7V(Typ.)(VCC/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
TM116VDSP01 |
|
Panel Brand |
TIANMA |
|
Panel Size |
11.6" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1920(RGB)×1080 , FHD |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
256.32(W)×144.18(H) mm |
|
Bezel Opening |
259.31(W)×148.73(H) mm |
|
Outline Size |
273.5(W)×166.5(H) mm |
|
Surface |
Hard coating |
|
Brightness |
1600 cd/m² (Typ.) |
|
Contrast Ratio |
900:1 (Typ.) (TM) |
|
Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
|
Display Mode |
SFT, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Display Colors |
16.7M 70% NTSC |
|
Lamp Type |
6S8P WLED , 30K hours , Without Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
527g (Typ.) |
|
Signal Interface |
LVDS (2 ch, 8-bit) , 30 pins Connector |
|
Input Voltage |
3.3/10.7/20/-7V(Typ.)(VCC/AVDD/VGH/VGL) |
|
Environment |
Operating Temp.: -20 ~ 80 °C ; Storage Temp.: -30 ~ 85 °C |

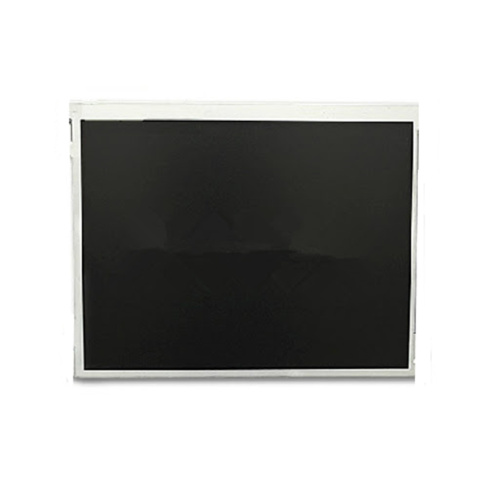

Product Picture:
