TM104SDHG40 TIANMA 10.4 inch TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

TM104SDHG40 is a 10.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. Tianma TFT-LCD is a 10.4 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM104SDHG40 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 243(W)×184(H)×7(D) mm, viewing area size of 214.2(W)×161.1(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of TBD. As a TN, Normally White, Transmissive LCM product, TM104SDHG40 can provides 400 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 8S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. TM104SDHG40 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3/11.0/25/-7.0V (Typ.)(VCC/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	TM104SDHG40
Panel Brand	TIANMA
Panel Size	10.4"
Resolution	800(RGB)×600 , SVGA
Display Area	211.2(W)×158.4(H) mm
Outline Size	243(W)×184(H) ×7(D) mm
Brightness	400 cd/m² (Typ.)
Viewing Angle	70/70/60/70 (Typ.)(CR≥10)
Best View on	12 o'clock
Display Colors	262K/16.7M 50% NTSC
Frequency	60Hz
Weight	TBD
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Bezel Opening	214.2(W)×161.1(H) mm
Surface	Antiglare, Hard coating (3H)
Contrast Ratio	500:1 (Typ.) (TM)
Display Mode	TN, Normally White, Transmissive
Response Time	10/15 (Typ.)(Tr/Td)
Lamp Type	8S3P WLED , 50K hours , With LED Driver
Touch Screen	Without
Signal Interface	LVDS (1 ch, 6/8-bit) , 20 pins Connector
Input Voltage	3.3/11.0/25/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

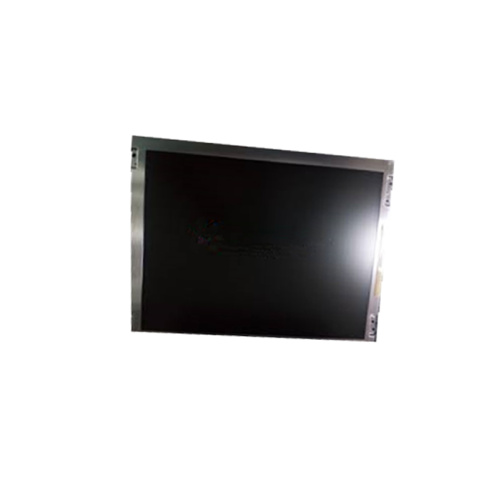

Product Picture:

TM104SDHG40
