TM104SBH01 TIANMA 10.4 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM104SBH01 is a 10.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen 4-wire Resistive Touch. Tianma TFT-LCD is a 10.4 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Final Ver2.3 which was released out on 12 30 2015, TM104SBH01 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 236(W)×176.9(H)×7.6(D) mm, viewing area size of 214.2(W)×161.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 412g. As a TN, Normally White, Transmissive LCM product, TM104SBH01 can provides 300 cd/m² display brightness 400:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 6S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM104SBH01 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model |
TM104SBH01 |
|
Brand |
TIANMA |
|
Diagonal Size |
10.4 inch |
|
Type |
a-Si TFT-LCD, LCM |
|
Pixel Format |
800(RGB)×600 [SVGA] |
|
Configuration |
RGB Vertical Stripe |
|
Active Area |
211.2(H)×158.4(V) mm |
|
Outline Dim. |
236(H)×176.9(V) ×7.6(D) mm |
|
Bezel Area |
214.2(H)×161.4(V) mm |
|
Treatment |
Antiglare, Hard coating (3H) |
|
Luminance |
300 cd/m² (Typ.) |
|
Contrast Ratio |
400:1 (Typ.) (TM) |
|
View Direction |
12 o'clock |
|
Response Time |
10/15 (Typ.)(Tr/Td) |
|
Viewing Angle |
70/70/60/70 (Typ.)(CR≥10) |
|
Operating Mode |
TN, Normally White, Transmissive |
|
Support Color |
262K 50% NTSC |
|
Light Source |
WLED [6S6P] , 20K hours , W/O Driver |
|
Weight |
412g |
|
Frame Rate |
60Hz |
|
Touch Panel |
4-wire Resistive Touch |
|
Interface Type |
LVDS (1 ch, 6-bit) , 20 pins Connector |
|
Power Supply |
3.3V (Typ.) |
|
Environment |
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

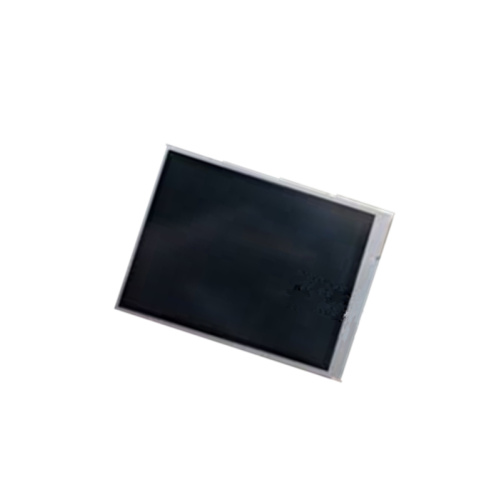

Product Picture:
