TM103XDGP01 TIANMA 10.3 inch TFT-LCD

$20.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

TM103XDGP01 is a 10.3 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, without touch screen. Tianma TFT-LCD is a 10.3 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM103XDGP0 supports display 1920(RGB)×720 with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 594 PPI. As for mechanical detail, it features active area of 70.08(W)×52.56(H) mm, outline size of 262.04(W)×110.3(H)×11.9(D) mm, viewing area size of 245.65(W)×93.66(H) mm, with surface treament of Hard coating, net weight of TBD. As a SFT, Normally Black, Transmissive LCM product, TM103XDGP01 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC). This product adopted 8S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM103XDGP01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	TM103XDGP01
Panel Brand	TIANMA
Panel Size	10.3"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1920(RGB)×720
Pixel Format	RGB Vertical Stripe
Display Area	70.08(W)×52.56(H) mm
Bezel Opening	245.65(W)×93.66(H) mm
Outline Size	262.04(W)×110.3(H) ×11.9(D) mm
Surface	Hard coating
Brightness	800 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Display Mode	SFT, Normally Black, Transmissive
Best View on	Symmetry
Response Time	20 (Typ.)(Tr+Td)
Display Colors	16.7M 75% NTSC
Lamp Type	8S3P WLED , 20K hours , Without Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	TBD
Signal Interface	LVDS (2 ch, 8-bit) , 50 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C

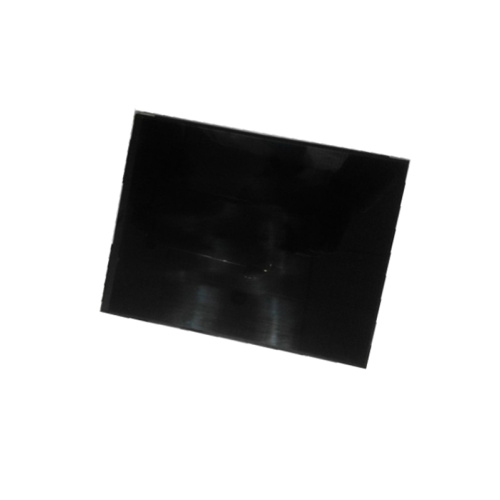

Product Picture:

TM103XDGP01
