TM103XDKP06 TIANMA 10.3 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM103XDKP06 is a 10.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. Tianma TFT-LCD is a 10.3 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Ver0.5 which was released out on 12 13 2017, TM103XDKP06 supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 243.648(W)×91.368(H) mm, outline size of 261.04(W)×109.3(H) mm, with surface treament of Hard coating, net weight of TBD. As a SFT, Normally Black, Transflective LCM product, TM103XDKP06 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 8S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. TM103XDKP06 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3/3.3V (Typ.)(VDD/AVDD). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Panel Model	TM103XDKP06
Panel Brand	TIANMA
Panel Size	10.3"
Resolution	1920(RGB)×720
Display Area	243.648(W)×91.368(H) mm
Outline Size	261.04(W)×109.3(H) mm
Brightness	800 cd/m² (Typ.)
Viewing Angle	88/88/88/88 (Typ.)(CR≥10)
Best View on	Symmetry
Display Colors	16.7M 72% NTSC
Frequency	60Hz
Weight	TBD
Panel Type	a-Si TFT-LCD , LCM
Pixel Format	RGB Vertical Stripe
Surface	Hard coating
Contrast Ratio	1000:1 (Typ.) (TM)
Display Mode	SFT, Normally Black, Transflective
Response Time	20 (Typ.)(Tr+Td)
Lamp Type	8S3P WLED , 10K hours , Without Driver
Touch Screen	Without
Signal Interface	LVDS (2 ch, 8-bit) , 50 pins Connector
Input Voltage	3.3/3.3V (Typ.)(VDD/AVDD)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²)

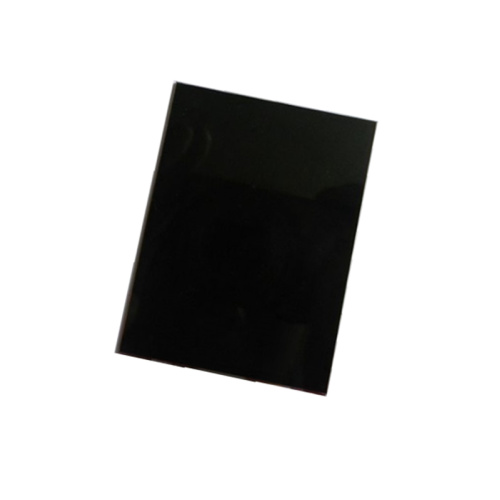

Product Picture:

TM103XDKP06
