TM101JDHG38 TIANMA 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TM101JDHG38 is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. Tianma TFT-LCD is a 10.1 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM101JDHG38 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 231.22(W)×150.6(H)×6.6(D) mm, viewing area size of 219.96(W)×138.6(H) mm, with surface treament of Hard coating, net weight of TBD. As a SFT, Normally Black, Transmissive LCM product, TM101JDHG38 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 6S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. TM101JDHG38 utilizes LVDS (1ch, 6/8-bit) as it's signal inputting systerm, which connected by 40pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Model Name |
TM101JDHG38 |
|
Manufacturer |
TIANMA |
|
Screen Size |
10.1 inch |
|
Screen Type |
LCM, a-Si TFT-LCD |
|
Pixel Number |
1280(RGB)×800 (WXGA) |
|
Arrangement |
RGB Vertical Stripe |
|
Active Area(mm) |
216.96 × 135.6 (H×V) |
|
Outline(mm) |
231.22 × 150.6 × 6.6 (H×V×D) |
|
Bezel Area(mm) |
219.96 × 138.6 (H×V) |
|
Treatment |
Hard coating |
|
Luminance |
400 cd/m² (Typ.) |
|
Contrast Ratio |
800 : 1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Response |
25 (Typ.)(Tr+Td) ms |
|
Good View at |
Symmetry |
|
Work Mode |
SFT, Normally Black, Transmissive |
|
Color Depth |
262K/16.7M 50% NTSC |
|
Backlight |
6S5P WLED , 30K hours , With LED Driver |
|
Mass |
TBD |
|
Refresh Rate |
60Hz |
|
Touchscreen |
Without |
|
Signal Type |
LVDS (1 ch, 6/8-bit) , Connector 40 pins |
|
Voltage Supply |
3.3V (Typ.) |
|
Max. Ratings |
Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |

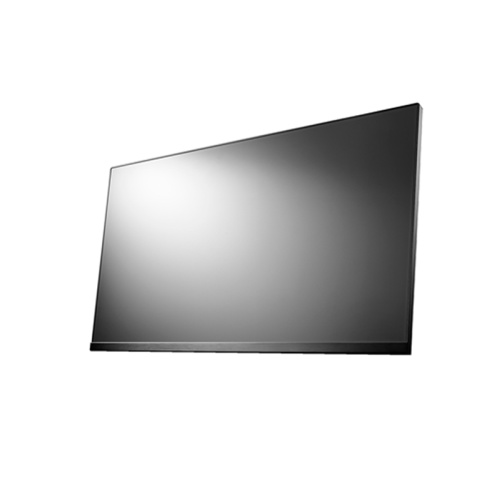

Product Picture:
