TM101DDHG06 TIANMA 10.1 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

TM101DDHG06 is a 10.1 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, without touch screen. Tianma TFT-LCD is a 10.1 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM101DDHG06 supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 222.72(W)×125.28(H) mm, outline size of 235(W)×143(H)×5.5(D) mm, viewing area size of 225.52(W)×128.08(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of TBD. As a TN, Normally White, Transmissive LCM product, TM101DDHG06 can provides 350 cd/m² display brightness 500:1 transimissive contrast ratio, 80/80/75/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 7/9 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 47% (NTSC). This product adopted 3S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TM101DDHG06 utilizes Parallel RGB (1ch, 8-bit) as it's signal inputting systerm, which connected by 50pins FPC with power supply voltage of 3.3/11/22/-7V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model	TM101DDHG06
Brand	TIANMA
Diagonal Size	10.1 inch
Pixel Format	1024(RGB)×600 [WSVGA]
Active Area	222.72(H)×125.28(V) mm
Bezel Area	225.52(H)×128.08(V) mm
Luminance	350 cd/m² (Typ.)
View Direction	12 o'clock
Viewing Angle	80/80/75/80 (Typ.)(CR≥10)
Support Color	16.7M 47% NTSC
Weight	TBD
Frame Rate	60Hz
Type	a-Si TFT-LCD , LCM
Configuration	RGB Vertical Stripe
Outline Dim.	235(H)×143(V) ×5.5(D) mm
Treatment	Antiglare, Hard coating (3H)
Contrast Ratio	500:1 (Typ.) (TM)
Response Time	7/9 (Typ.)(Tr/Td)
Operating Mode	TN, Normally White, Transmissive
Light Source	WLED [3S8P] , 30K hours , W/O Driver
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 8-bit) 50 pins FPC
Power Supply	3.3/11/22/-7V (Typ.)(VDD/AVDD/VGH/VGL)
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

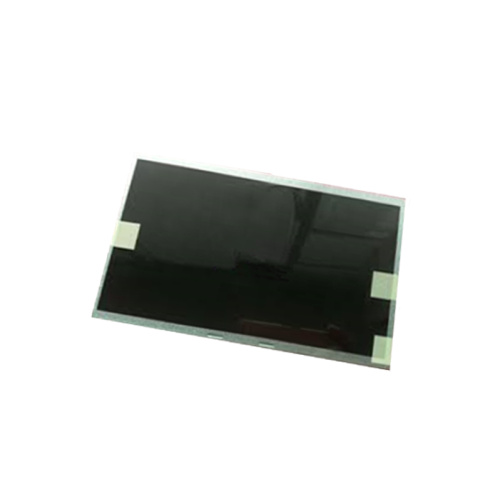

Product Picture:

TM101DDHG06
