TM101JDHP03 TIANMA 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
Tianma Microelectronics Co., Ltd. (hereafter called TIANMA) TM101JDHP03 is a 10.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. Tianma TFT-LCD is a 10.1 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. Based on datasheet with version of Pre.Ver1.6 which was released out on 3 30 2017, TM101JDHP03 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 229.46(W)×149.1(H)×4.7(D) mm, viewing area size of 217.96(W)×136.6(H) mm, with surface treament of Hard coating, net weight of 180g (Typ.). As a SFT, Normally Black, Transmissive LCM product, TM101JDHP03 can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 3S11P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. TM101JDHP03 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
TM101JDHP03 |
|
Panel Brand |
TIANMA |
|
Panel Size |
10.1" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1280(RGB)×800 , WXGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
216.96(W)×135.6(H) mm |
|
Bezel Opening |
217.96(W)×136.6(H) mm |
|
Outline Size |
229.46(W)×149.1(H) ×4.7(D) mm |
|
Surface |
Hard coating |
|
Brightness |
400 cd/m² (Typ.) |
|
Contrast Ratio |
800:1 (Typ.) (TM) |
|
Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) |
|
Display Mode |
SFT, Normally Black, Transmissive |
|
Best View on |
Symmetry |
|
Response Time |
25 (Typ.)(Tr+Td) |
|
Display Colors |
262K/16.7M 50% NTSC |
|
Lamp Type |
3S11P WLED , 30K hours , With LED Driver |
|
Frequency |
60Hz |
|
Touch Screen |
Without |
|
Panel Weight |
180g (Typ.) |
|
Signal Interface |
LVDS (1 ch, 6/8-bit) , 40 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -10 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

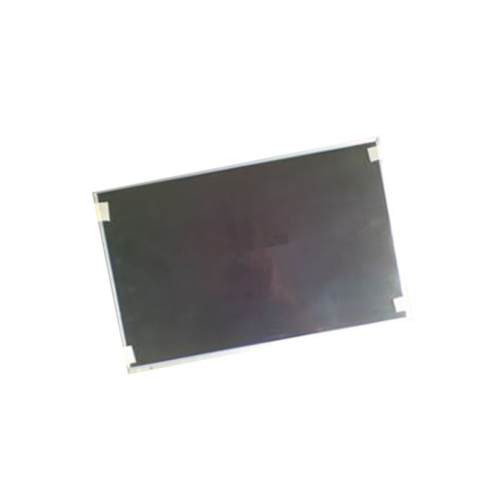

Product Picture:
