TM101DVHG01 TIANMA 10.1 inch TFT-LCD
- Payment Type:
- T/T, Paypal, Western Union
- Incoterm:
- FOB, EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Land, Air
- Port:
- HK, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | TAIWAN |
|---|---|
| Payment Type: | T/T,Paypal,Western Union |
| Incoterm: | FOB,EXW |
| Certificate: | CE,ROHS,ISO9001 |
| Transportation: | Ocean,Land,Air |
| Port: | HK,Shenzhen |
TM101DVHG01 is a 10.1 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, With LED Driver, touchscreen PCAP. Tianma TFT-LCD is a 10.1 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver1.0 which was released out on 5 9 2016, TM101DVHG01 supports display 1024(RGB)×600 (WSVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 222.72(W)×125.28(H) mm, outline size of 236.4(W)×147.89(H)×7.75(D) mm, with surface treament of Hard coating (6H), net weight of 358g (Typ.). As a TN, Normally White, Transmissive LCM product, TM101DVHG01 can provides 360 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/75/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 7/9 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 47% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. TM101DVHG01 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
We are able to offer AD board for this display to support VGA video input.
|
Panel Model |
TM101DVHG01 |
|
Panel Brand |
TIANMA |
|
Panel Size |
10.1" |
|
Panel Type |
a-Si TFT-LCD, LCM |
|
Resolution |
1024(RGB)×600 , WSVGA |
|
Pixel Format |
RGB Vertical Stripe |
|
Display Area |
222.72(W)×125.28(H) mm |
|
Outline Size |
236.4(W)×147.89(H) ×7.75(D) mm |
|
Surface |
Hard coating (6H) |
|
Brightness |
360 cd/m² (Typ.) |
|
Contrast Ratio |
800:1 (Typ.) (TM) |
|
Viewing Angle |
80/80/75/80 (Typ.)(CR≥10) |
|
Display Mode |
TN, Normally White, Transmissive |
|
Response Time |
7/9 (Typ.)(Tr/Td) |
|
Display Colors |
262K/16.7M 47% NTSC |
|
Lamp Type |
WLED , 30K hours , With LED Driver |
|
Frequency |
60Hz |
|
Touch Screen |
PCAP |
|
Panel Weight |
358g (Typ.) |
|
Signal Interface |
LVDS (1 ch, 6/8-bit) , 40 pins Connector |
|
Input Voltage |
3.3V (Typ.) |
|
Environment |
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |

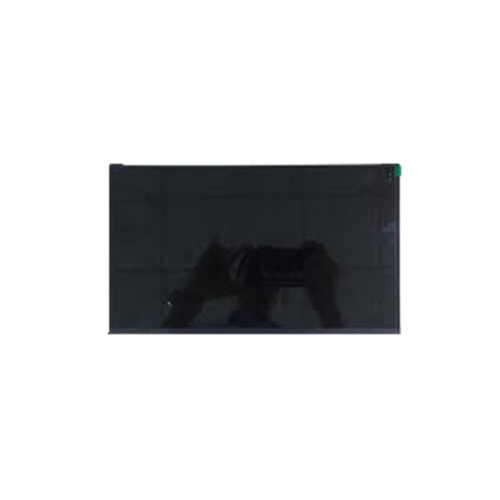

Product Picture:
