TM101VDSP01 TIANMA 10.1 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

TM101VDSP01 is a 10.1 inch diagonal a-Si TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, without touch screen. Tianma TFT-LCD is a 10.1 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. TM101VDSP01 supports display 1200(RGB)×1920 (WUXGA) with aspect ratio of 10:16 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 135.36(W)×216.576(H) mm, outline size of 143(W)×227.926(H)×4.3(D) mm, with surface treament of Clear. As a IPS, Normally Black, Transmissive LCM product, TM101VDSP01 can provides 400 cd/m² display brightness 900:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 73% (NTSC). This product adopted 8S4P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TM101VDSP01 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 45pins Connector with power supply voltage of 1.6/3.3V (Typ.)(IIOVCC/VDD).

We are able to offer AD board for this display to support VGA video input.

Panel Model	TM101VDSP01
Panel Brand	TIANMA
Panel Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1200(RGB)×1920 , WUXGA
Pixel Format	RGB Vertical Stripe
Display Area	135.36(W)×216.576(H) mm
Outline Size	143(W)×227.926(H) ×4.3(D) mm
Surface	Clear
Brightness	400 cd/m² (Typ.)
Contrast Ratio	900:1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Display Mode	IPS, Normally Black, Transmissive
Best View on	Symmetry
Response Time	20 (Typ.)(Tr+Td)
Display Colors	16.7M 73% NTSC
Lamp Type	8S4P WLED , Without Driver
Touch Screen	Without
Signal Interface	MIPI (4 data lanes) , 45 pins Connector
Input Voltage	1.6/3.3V (Typ.)(IIOVCC/VDD)
Environment	Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -40 ~ 80 °C

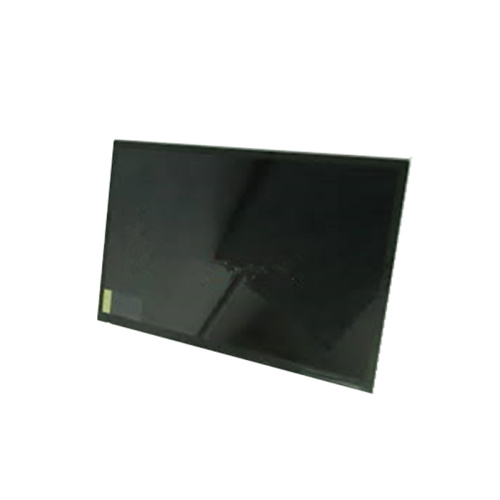

Product Picture:

TM101VDSP01
