TL101ADXP01 TIANMA 10.1 inch TFT-LCD

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Incoterm:: FOB, EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 3 Days

Transportation:: Ocean, Land, Air

Port:: HK, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	TAIWAN
Payment Type:	T/T,Paypal,Western Union
Incoterm:	FOB,EXW
Certificate:	CE,ROHS,ISO9001
Transportation:	Ocean,Land,Air
Port:	HK,Shenzhen

Product Description

TL101ADXP01 is a 10.1 inch diagonal LTPS TFT-LCD display screen product from TIANMA, with a built-in WLED backlight, without backlight driver, without touch screen. Tianma TFT-LCD is a 10.1 inch with consumer Lcd Display, it have LCD Controller and Tft Color Screen. On the basis of latest version datasheet Ver1.0 which was released out on 8 6 2014, TL101ADXP01 supports display 2560(RGB)×1600 (WQXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 300 PPI. As for mechanical detail, it features active area of 216.576(W)×135.36(H) mm, outline size of 221.576(W)×145.26(H)×4.24(D) mm, net weight of TBD. As a SFT, Normally Black, Transmissive LCM product, TL101ADXP01 can provides 430 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥100) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/15 (Typ.)(Tr/Tf); 25 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 90% (NTSC). This product adopted 7S6P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TL101ADXP01 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 82 pins Connector with power supply voltage of 1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

Model Name	TL101ADXP01
Panel Brand	TIANMA
Panel Size	10.1"
Resolution	2560(RGB)×1600 , WQXGA
Display Area	216.576(W)×135.36(H) mm
Outline Size	221.576(W)×145.26(H) ×4.24(D) mm
Brightness	430 cd/m² (Typ.)
Viewing Angle	85/85/85/85 (Typ.)(CR≥100)
Best View on	Symmetry
Display Colors	16.7M 90% NTSC
Frequency	60Hz
Panel Model	LTPS TFT-LCD , LCM
Panel Type	RGB Vertical Stripe
Surface	1000:1 (Typ.) (TM)
Contrast Ratio	SFT, Normally Black, Transmissive
Display Mode	10/15 (Typ.)(Tr/Tf); 25 (Typ.)(G to G)
Response Time	7S6P WLED , Without Driver
Lamp Type	Without
Signal Interface	MIPI (2 ch, 4 data lanes) , 82 pins Connector
Input Voltage	1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN)
Environment	Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -40 ~ 85 °C

Product Picture:

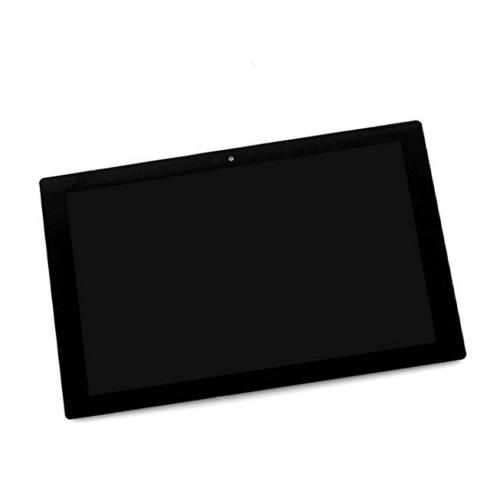

TL101ADXP01
